| 产品特性：工控机 | 品牌：DFI | 型号：VC70B-MTH |
| 设备类型：工控电脑 |

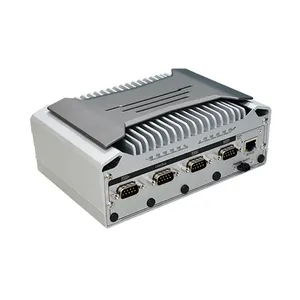

High Performance Compact in-vehicle system
Intel® Core™ Ultra processor with LPDDR5-6400 soldered memory
Remote Management: Supports Out of band control
Build-in 9 axis sensor for driver detection within fleet management
Triple Displays: 1 HDMI, 1 DP, 1 USB-C DP Alt. mode
Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
Rich I/O: 2 2.5GbE, 1 GbE, 5 USB 3.2, 1 USB-C, 2 USB 2.0, 3 COM, 2 CAN FD
系统
处理器
Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz~5.0GHz, 28W
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz~4.8GHz, 15W
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz~4.3GHz, 15W
内存
Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Arc™ Graphics
特性
OpenGL 4.6, Direct X 12.2, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9,AV1, AVC
显示器
1 x HDMI 1.4b
1 x DP++
1 x USB-C DP Alt. mode
HDMI: resolution up to 4096x2160@24Hz
DP++: resolution up to 4096x2160@24Hz
USB-C DP: resolution up to 4096x2304@60Hz
三重显示
HDMI + DP + USB-C DP Alt. mode
扩充
界面
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB 2.0/PCIe x1)
以太网路
控制器
2 x Intel® I226IT (10/100/1000/2500Mbps)
1 x Intel® i210IT (10/100/1000Mbps)
LED
指示灯
1 x Power LED
1 x HDD LED
前板输入/输出
以太网络
2 x 2.5GbE @ RJ45 connectors
USB
5 x USB 3.2 Type A
1 x USB Type C
2 x USB 2.0 Type A
显示
1 x HDMI
1 x USB-C DP Alt. Mode
1 x DP++
SIM
1 x Nano SIM slot

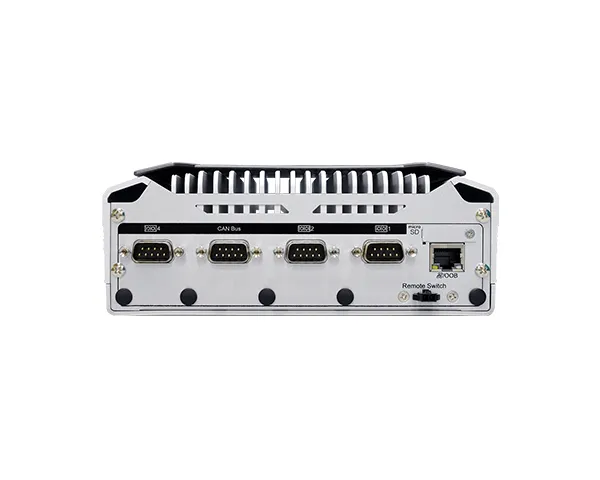

背板输入/输出
以太网络
1 x GbE @RJ-45 connector (support OOB)
串口
COM 1: RS-232/422/485
COM 2: RS-232
COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
CANBus
2 x CAN FD (DB9-M)
GMSL2
1 x Micro SD slot for OOB
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
9~36V DC
端口
3-pin terminal block (VCC/IGN/GND)
RTC 电池
CR2032 Coin Cell (Cable type)
电源管理
1. Ignition On/Off control
2. System On delay time
3. OS Protection Time
4. System Off delay time
5. Car Battery Voltage Monitoring
6. Battery Low Voltage Protect
支持操作系统
微软
Windows 11 & 10 IoT Enterprise 64-bit
Linux
Linux (by request)
环境指标
温度
Operating: -20 to 70°C fanless
Operating: -20 to 50°C fanless (28W CPU only)
Storage: -40 to 85°C
湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RH
机械结构
尺寸
181.6mm (W) x 71.5mm (H) x 118.4mm (D)
安装方式
Wall mount
重量
<3KG
安规认证
冲击测试
Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
抗振动测试
Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
认证
CE, FCC Class A, E-Mark (E24), RoHS, UKCA
