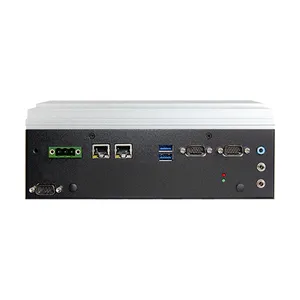

• High Performance Fan-less In-Vehicle System

• Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors

• 4 x PoE or 2 x 10G SFP+ Ports

• 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules

• 2KV ***lated 16bits DIO ports

• Supports M.2 B key 3042/3052 5G-NR module with dual SIM

• OOB management support upon request

• 15-Year CPU Life Cycle Support Until Q1&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

VC500-CMS-Q470E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W

Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W

Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W

Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W

Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W

VC500-CMS-W480E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W

Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W

Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W

Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W

Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W

VC500-CMS-H420E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W

Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W

Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz)

芯片组

VC500-CMS-Q470E

Intel® Q470E Chipset

VC500-CMS-W480E

Intel® W480E Chipset

VC500-CMS-H420E

Intel® H420E Chipset

内存

Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor only

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 630 (processor integrated)

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

Support DP++/DP 1.4
Resolution up to 4096x2304 @60Hz for DP
1 x HDMI with lock hole
2 x DP ports with lock hole

三重显示

1 HDMI + 2 DP++

储存

外插

2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1

内插

1 x M.2 2280 M Key slot, supports 2280 devices
PCIe x4 & SATA signal, support boot up function

音讯

音讯编译码器

Realtek ALC888

界面

1 x Mic-in and 1 x Line-in

以太网路

控制器

1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210IT

LED

指示灯

1 x Storage Activity (Red)
1 x Power Status (Yellow)
2 x Programmable general purpose (Green, Blue)

前板输入/输出

以太网络

2 x RJ45 GbE ports

串口

1 x DB-9 RS232 ports (COM 5)

USB

VC500-CMS-Q470E

4 x USB 3.1 Gen2

VC500-CMS-W480E

4 x USB 3.1 Gen2

VC500-CMS-H420E

2 x USB 3.1 Gen2

音源

1 x Line-out, 1 x Mic-in and 1 x Line-in with 3.5mm audio jacks

DIO

VC500-CMS-Q470E

2 x ***lated DIO port by 2 x DB-15 female connectors

Supports 8bit DI & 8 bit DO with 2KV ***lation

VC500-CMS-W480E

2 x ***lated DIO port by 2 x DB-15 female connectors

Supports 8bit DI & 8 bit DO with 2KV ***lation

VC500-CMS-H420E

N/A

天线

2 x antenna holes

DC in

3 pin terminal block connector

带外管理

Optional RJ45 port for OOB management

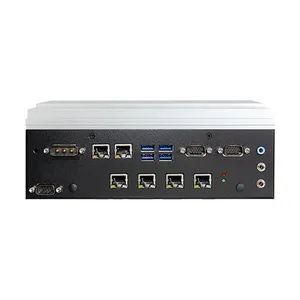

PoE/ 10G

VC500-CMS-Q470E

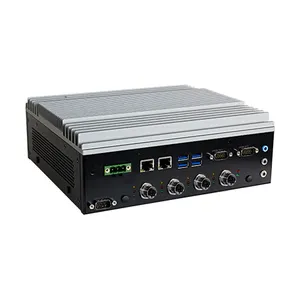

4x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

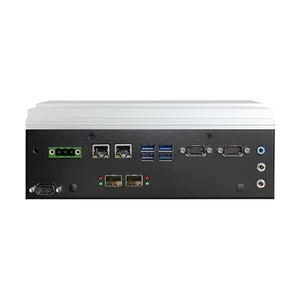

2x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

VC500-CMS-W480E

4x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

2x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

VC500-CMS-H420E

N/A

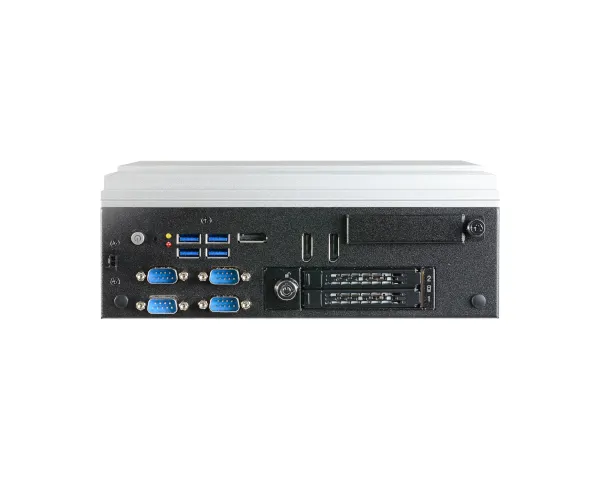

背板输入/输出

串口

4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)

USB

4 x USB 3.1 Gen2

显示

2 x DP++ ports
1 x HDMI port

按键

1 x Power button
1 x Reset button

切换

2-pin remote switch

天线

2 x antenna holes

SIM

3 x accessible SIM slots with cover bracket

CANBus

2 x DB-9 ports for CAN bus (optional)

侧面输入/输出

天线孔

2 x antenna holes on right side
2 x antenna holes on left side

内部输入/输出

串行端口

1 x 2x5 pin block header for RS232

Mini PCIe

1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus module

M.2

VC500-CMS-Q470E

Total 3 x M.2 slots

1 x 2230 E-key slot (PCIe x1 & USB2.0)

1 x 3042/3052 B-key (USB3.0 & PCIex1) with dual SIM slots on faceplate

1 x 2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe

VC500-CMS-W480E

Total 3 x M.2 slots

1 x 2230 E-key slot (PCIe x1 & USB2.0)

1 x 3042/3052 B-key (USB3.0 & PCIex1) with dual SIM slots on faceplate

1 x 2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe

VC500-CMS-H420E

Total 3 x M.2 slots

1 x 2230 E-key slot (PCIe x1 & USB2.0)

1 x 3042/3052 B-key (USB3.0 only) with dual SIM slots on faceplate

1 x 2280 M-Key-slot (SATA only)

冷却

风扇

Passive cooling

安全性

信赖平台模块

VC500-CMS-Q470E

Supports dTPM2.0 by default (disabled by BIOS setting)

Optional fTPM2.0 supported

VC500-CMS-W480E

Supports dTPM2.0 by default (disabled by BIOS setting)

Optional fTPM2.0 supported

VC500-CMS-H420E

N/A

Hardware Monitor

重力感应器

Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep

电源

类型

VC500-CMS-Q470E

3pin 3W3 connector

VC500-CMS-W480E

3pin 3W3 connector

VC500-CMS-H420E

3 pin terminal block

供应

Wide Range 9~50VDC with power management (on/off delay) and ignition

支持操作系统

微软

Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SW

Linux

Ubuntu Linux 20.04

环境指标

运作温度

-20°C to 70°C
without turbo boost and throttling is expected

储存温度

-40°C to 85°C

相对湿度

10% to 95% (non-condensing)

机械结构

结构

Metal + Aluminum

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

235 x 87.5 x 221mm ( mounting bracket excluded )

重量

5.5 kg

颜色

Black and Silver

安规认证

冲击测试

MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Tested by SSD, HDD is not support)

抗振动测试

MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI

认证

FCC, E-Mark (E24), CE, RoHS, UKCA

装箱单

装箱单

1 VC500-CMS system unit
1 Power connector
1 Mounting bracket
1 3W3 adaptor cable
