| 品牌：DFI | 型号：VC230-AL | 设备类型：工控电脑 |

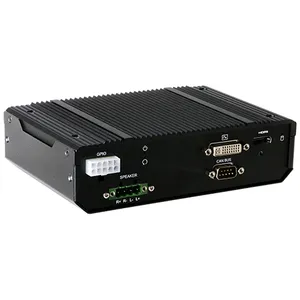

Anti-vibration and fanless in-vehicle computer
Supports ignition delay on/off function
1 mSATA, eMMC storage options
Support GNSS by default
Dual SIM support for cellular
Supports Wi-Fi, LTE, and CAN bus communication
15-Year CPU Life Cycle Support Until Q4&＃39; 31 (Based on Intel IOTG Roadmap)
系统
处理器
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.6GHz), 6.5W
内存
1 DDR3L 1600/1866MHz SODIMM memory support up to 8GB
BIOS
Insyde SPI 64Mbit
显示
控制器
Intel® HD Graphics
显示器
1 x HDMI
1 x DVI-I
HDMI: resolution up to 3840x2160 @ 60Hz
DVI-I: resolution up to 2560x1600 @ 60Hz
双重显示
HDMI + DVI-I
储存
内插
32GB/64GB eMMC onboard
1 x mSATA slot
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB/Dual micro SIM)
1 x Full-size Mini PCIe (PCIe/USB/micro SIM)
1 x Half-size Mini PCIe (share with 1 x mSATA slot)
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
界面
2 x RJ45 GbE ports
全球卫星导航系统
全球卫星导航系统
Support GPS, Gallileo, GLONASS, BeiDou by u-blox NEO-M8N
Dead reckoning support upon request
LED
指示灯
1 x Power LED
1 x Storage LED

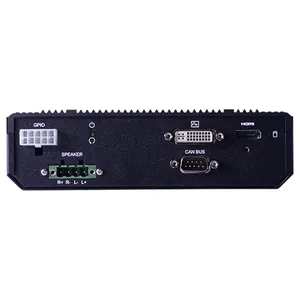

前板输入/输出
显示
1 x HDMI
1 x DVI-I
音源
1 x 4pins 5.00mm terminal block connector
DIO
***lated 8 bits DIO via 2 x 5pin 4.2mm power connector
Input voltage: 0 to 30VDC,
Output current: 50mA pre pin and Max. 200mA total.
On-state voltage: 12VDC nominal, open collector to 30VDC.
按键
1 x Reset button
CANBus
Supports dual Can bus via 1 x DB9 port by DFI MPE-CAN2 Mini PCIe module (optional)
天线
3 x SMA antenna holes

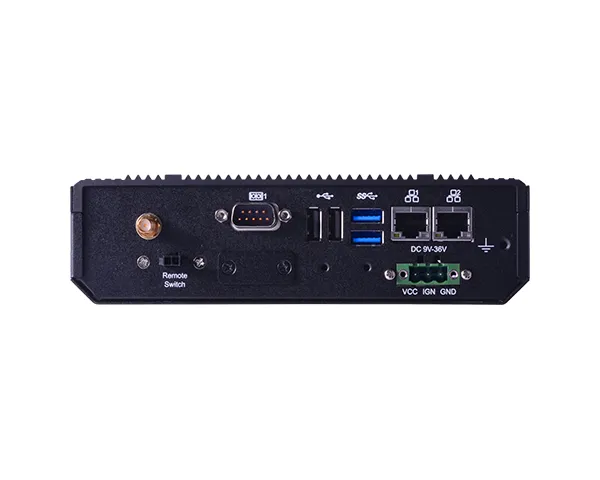

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (DB9-M)
USB
2 x USB 2.0 (type A)
2 x USB 3.0
天线
1 x SMA antenna hole
1 x FME antenna hole
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
电源
类型
Wide range 9~36V with ignition control
端口
3-pin terminal block (VCC/ACC/GND)
支持操作系统
支持操作系统
Windows 10 64-bit
Linux
CentOS 7
环境指标
运作温度
-40 to 70°C
储存温度
-40 to 85°C
机械结构
结构
Aluminum + SPGC Metal
安装方式
Wall/VESA mount
尺寸 (宽 x 高 x 深)
180mm x 50mm x 121.2mm (W x H x D)
重量
1 kg including CPU and memory
安规认证
冲击测试
MIL-STD-810G 516.6
抗振动测试
MIL-STD 810G 514.6C-3
认证
CE/FCC Class B/E-mark (E13)
