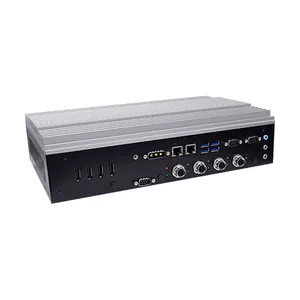

• High Performance Fan-less Edge AI In-Vehicle System

• Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors

• 4x M12/RJ45 802.11af PoE or 2x 10G SFP+ Ports

• Supports MXM GPU module with Four Display Ports

• 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules

• Supports M.2 B key 3042/3052 5G-NR module with dual SIM

• OOB management support upon request

• 15-Year CPU Life Cycle Support Until Q1&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
- Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W
- Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W
- Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W

芯片组

Intel® Q470E/W480E Chipset

内存

Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor only

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® processor integrated or Independent MXM module by BIOS selection

显示器

4 x Display Ports with lock holes from MXM
1 x HDMI combo port and 2 x DP++ ports from CPU

Compatible MXM

Type A or B MXM modules: RTX A2000, RTX3000, A500, A1000

储存

外插

2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1

内插

1 x M.2 2280 M Key slot, supports 2280 devices
PCIe x4 & SATA signal, support boot up function

界面

SATA

音讯

音讯编译码器

ALC 888

界面

1 x Mic-in
1 x Line-in

以太网路

控制器

1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210IT

LED

指示灯

1 x Storage Activity (Red)
1 x Power (Green)
2 x Programmable general purpose (Green, Blue)

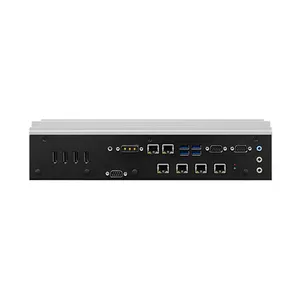

前板输入/输出

以太网络

2 x RJ45 GbE ports

串口

1 x DB-9 RS232 ports (COM 5)

USB

4 x USB 3.1 Gen2

音源

1 x Line-out, 1 x Mic-in and 1x Line-in with 3.5mm audio jacks

DIO

2 x ***lated DIO port by 2 x DB-15 female connectors
Supports 8bit DI & 8 bit DO with 2KV ***lation

天线

2 x antenna holes

DC in

W3 3 pin connector

带外管理

Optional RJ45 port for OOB management

PoE/ 10G

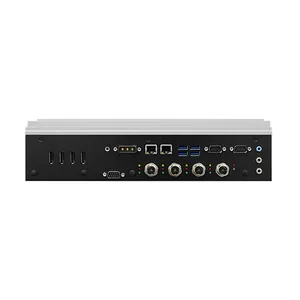

4 x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

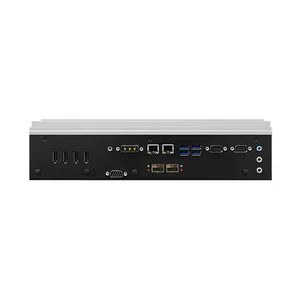

2 x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

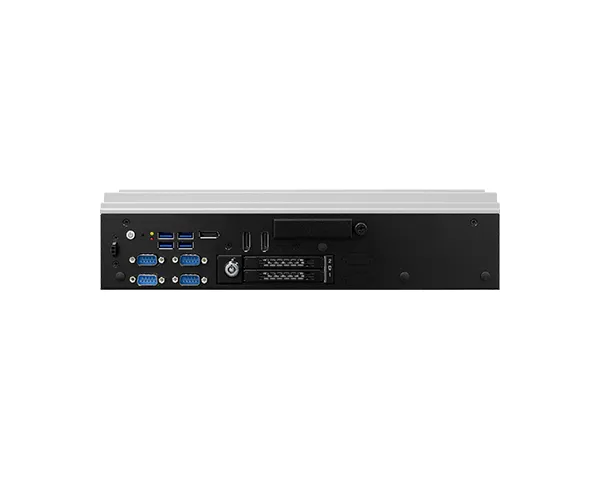

背板输入/输出

串口

4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)

USB

4 x USB 3.1 Gen2

显示

4 x Display Ports with lock holes from MXM
1 x DP++/HDMI combo port and 2 x DP++ ports from CPU

按键

1 x Power Button
1 x Reset Button

切换

2-pin remote switch

天线

2 x antenna holes

SIM

3 x accessible SIM slots with cover bracket

CANBus

2 x DB-9 ports for CAN bus (optional)

侧面输入/输出

天线孔

2 x antenna holes on right side
2 x antenna holes on left side

内部输入/输出

串行端口

1 x 2x5 pin block header for RS232

Mini PCIe

1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus module

M.2

Total 3 x M.2 slots
1 x 2230 E-key slot (PCIe x1 & USB2.0)
1 x 3042/3052 B-Key (USB3.0 & PCIex1) with dual SIM slots on faceplate
1 x 2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe

冷却

风扇

Passive cooling by default
Optional Fan cooling upon request

安全性

信赖平台模块

Supports dTPM2.0 by default (disabled by BIOS setting)
Optional fTPM2.0 supported

Hardware Monitor

重力感应器

Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep

电源

类型

3pin 3W3 connector

供应

Wide Range 9~50VDC with power management (on/off delay) and ignition

支持操作系统

微软

Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SW

Linux

Ubuntu Linux 20.04

环境指标

运作温度

-20°C to 60°C
without turbo boost and throttling is expected

储存温度

-40°C to 85°C

相对湿度

10% to 95% (non-condensing)

机械结构

结构

Metal + Aluminum

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

346mm x 87.55 mm x 221mm

重量

6.95 Kg

颜色

Black and Silver

安规认证

冲击测试

MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by
SSD, HDD is not support)

抗振动测试

MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI

认证

FCC, E-Mark, CE, RoHS, UKCA

装箱单

装箱单

1 VC500-CMS-MXM system unit
1 Power connector
1 Mounting bracket
1 3W3 adaptor cable
