| 产品特性：工业平板 | 品牌：DFI | 型号：TPC150-RPS |
| 设备类型：工控电脑 |

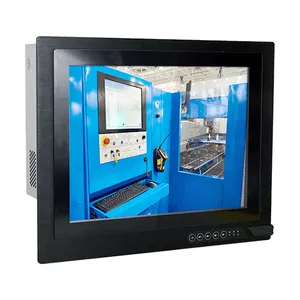

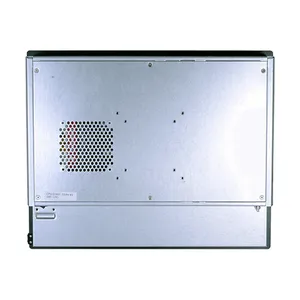

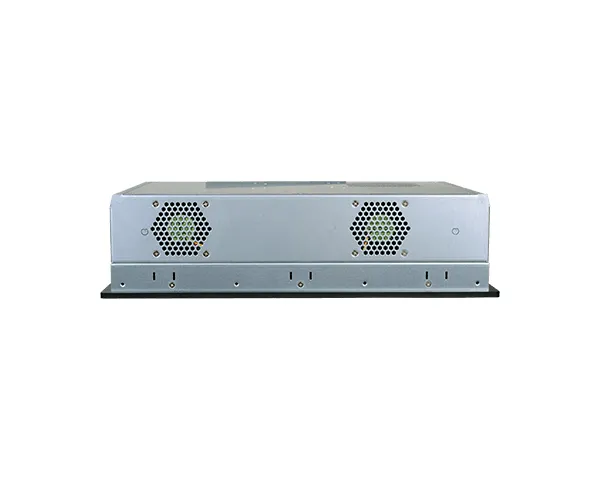

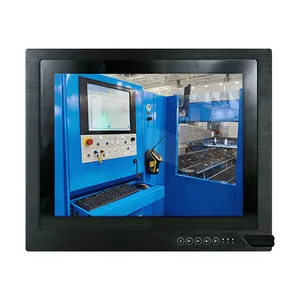

15" 1024x768 TFT LCD Panel with Touch Screen
2 x 2.5" SATA drive bays
2 DDR5 SODIMM up to 64GB
Three Display Support: 1 DP++, 1 HDMI, 1 VGA
Rich I/O: 2 GbE, 2 COM, 6 USB 3.2 Gen1, Line-out (opt.)
VESA/Panel Mount
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
内存
2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz (ECC supported w/ i7&i5, Non-ECC supported)
显示和触控屏幕
屏幕
15" 1024x768 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen
亮度
300 cd/m²
视角
176 (H) / 176 (V)
背光寿命
50,000 MTBF LED Backlight
储存
内插
2 x 2.5" SATA 2.0 Drive Bay
扩充
界面
1 x PCIe Gen 5 x16 (Bifircation 1 x16, 2 x8)
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3), support NVMe
背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
2 x RS-232/422/485
USB
6 x USB 3.2 Gen1
显示
1 x DP++
1 x HDMI
1 x VGA
音源
1 x Line-out (available upon request)
电源
类型
100-240VAC
端口
C14 Connector
耗能
TBD
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC
Linux
Linux
环境指标
运作温度
0 to 50°C
储存温度
-30 to 70°C
相对湿度
10% to 90% @ 40°C (non-condensing)
机械结构
结构
Sheet Metal
IP等级
IP65 front bezel
安装方式
Panel/VESA (75x75/100x100) Mount
尺寸 (宽 x 高 x 深)
403 x 330 x TBD mm
重量
TBD
安规认证
认证
CE / FCC Class A
装箱单
装箱单
• 1 TPC150-RPS Touch Panel PC
• 1 Quick Installation Guide
