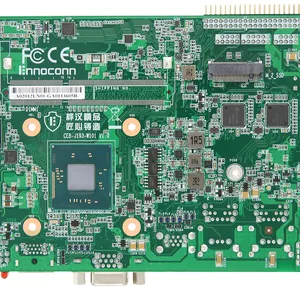

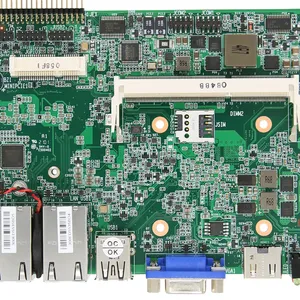

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-J193-W101 |
| 设备类型：工控电脑 |
Intel® Bay Trail Celeron® J1900, Quad-core, 2.0 GHz
支持单通道DDR3L(1.35V)1333 SO-DIMM内存插槽, 内存容量可达8GB
支持Mini-PCIe, M.2 扩展
宽压设计, 支持9-36V的 DC-IN电压输入
支持2 x Intel® I210AT GbE
支持Ennoconn USB SR Pro技术
| 处理器 Processor | Intel® Bay Trail Celeron® J1900 Processor (2.00 GHz) |
| 内存 Memory | Single Channel, 1 x SO-DIMM Slot, DDR3L (1.35V) 1333MHz, up to 8 GB |
| 存储 Storage | 1 x SATA2.0, 1 x M.2 2242 (SATA2.0), 1 x Mini-PCIe (mSATA supported） |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 2 x Intel® I210AT GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC269 HD Audio codec, supports 2.1-channel |
| BIOS | AMI UEFI BIOS |

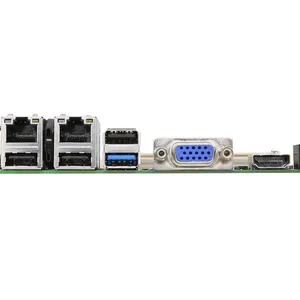

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 2560 x 1600@60Hz 3 x USB2.0 (USB SR Pro supported), 1 x USB3.0 (USB SR Pro supported) 2 x RJ45 1 x Remote 1 x Power LED, 1 x HDD LED 1 x Line-out, 1 x Mic-in |
| 内部接口 Internal I/O | 1 x RS232, 1 x RS232/422/485 4 x USB2.0 1 x 8 bit GPIO 1 x SATA2.0 1 x DC IN 1 x F_Panel (Power LED, HDD LED, Power button, reset button) |
| 扩展接口 Expansion | 1 x Mini-PCIe (WiFi/4G/3G/mSATA supported)[1] 1 x M.2 2242 (SATA SSD supported) 1 x SIM |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | 宽压9-36V DC-IN |
| 尺寸 Dimensions | 3.5" (146 x 105mm) |
| 操作系统 OS | Windows 7/8/10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
