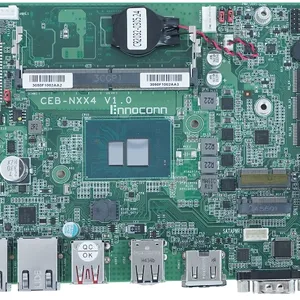

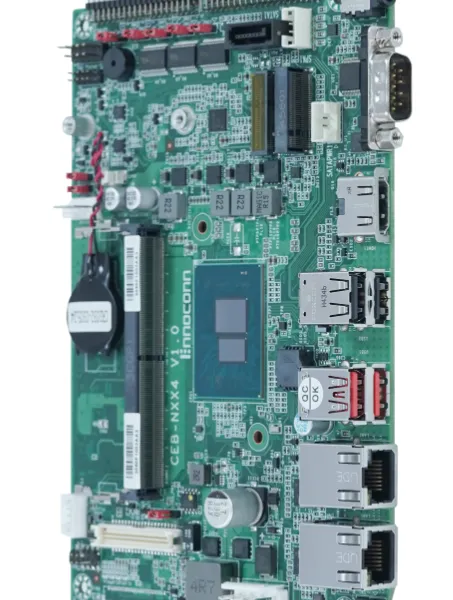

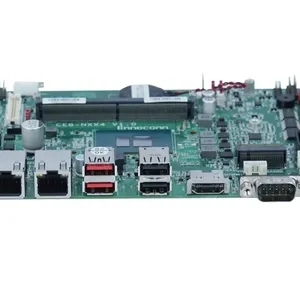

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-NXX4-W100 |
| 设备类型：工控电脑 |
Intel® Processor N97 & Core i3-N305
支持1 x SO-DIMM DDR5，支持16GB
支持2个千兆网络
支持6 x USB, 6 x COM, 8 bit GPIO
支持SATA, M.2 2242/2280, M.2 2230
支持宽压输入10V~36V
| 处理器 Processor | Intel® Processor N97(6M Cache,up to 3.6GHz) Intel® Core™ i3-N305(6M Cache,up to 3.8GHz) |
| 内存 Memory | 1 x SO-DIMM Slot, DDR5 4800MHz , up to 16GB |
| 存储 Storage | 1 x SATA 3.0 for 2.5" HDD/SSD 1 x M.2 2242/ 2280 M-key (SATA signal¹) for SSD |
| 显示 Display | Intel® UHD Graphics for 12th Gen Intel® Processors |
| 网口 Ethernet | 2 x RJ45 Intel® i226V GbE (10/100/1000 Mbps) |
| 音频 Audio | 1 x Realtek® ALC888S HD Audio Codec |
| BIOS | AMI UEFI BIOS |

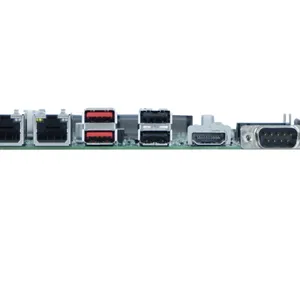

| 外部接口 Rear I/O | 1 x COM RS232/RS422/RS485 1 x HDMI: max resolution up to 4096 x 2160@24Hz 2 x USB3.2 2 x USB2.0 2 x RJ45 1 x Line out&Mic in (2 in 1) 1 x Power button with LED |
| 内部接口 Internal I/O | 1 x LVDS: max resolution up to 1920 x 1200@60Hz or 1 x eDP: max resolution up to 4096 x 2160@60Hz 2 x USB 2.0 1 x 8 bit GPIO 1 x RS232/RS485, 2 x RS232， 2 x TTL 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x Speaker Out (3W/4ohm) 1 x DC IN |
| 扩展接口 Expansion | 1 x M.2 2230 E-key（PCIe/CNVI/USB2.0） |
| 信赖平台模块 TPM | Nuvoton TPM2.0 |
| 环境 Environment | 操作温度 Operation Temp.: -20℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | 10-36V DC-IN |
| 尺寸 Dimensions | 4" (165 x 114mm) |
| 操作系统 OS | Windows10, Windows 11，Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 sec/min |
