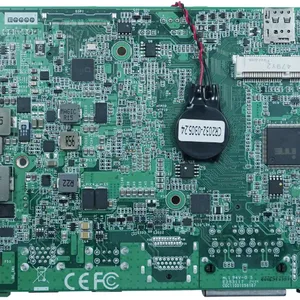

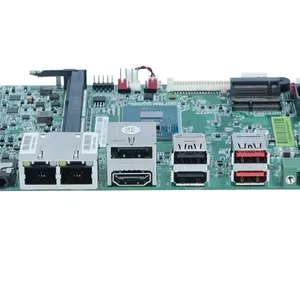

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-J643-W100 |
| 设备类型：工控电脑 |
Intel®）Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz)
支持1 x SO-DIMM DDR4，支持32GB
支持2个千兆网络
支持8 x USB, 4 x COM, 8 bit GPIO
支持SATA/M.2 SSD，M.2 WIFI, MiniPCIE
支持SIM卡
支持宽压输入12V~24V
| 处理器 Processor | Intel® Celeron® J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)，TDP 10W |
| 内存 Memory | 1 x SO-DIMM Slot, DDR4 3200MHz , up to 32GB |
| 存储 Storage | 1 x SATA 3.0, 1 x M.2 2242 (SATA3.0) |
| 显示 Display | Intel® UHD Graphics for 10th Gen Intel® Processors |
| 网口 Ethernet | 1 x RJ45 Intel® I210-AT (10/100/1000 Mbps) 1 x RJ45 Intel® I226-V (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio Codec |
| BIOS | AMI UEFI BIOS |

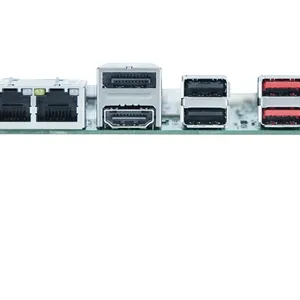

| 外部接口 Rear I/O | 1 x HDMI1.4: max resolution up to 4096 x 2160@24 Hz 1 x DP++: max resolution up to 4096 x 2160@60Hz 2 x USB 3.2 Gen2 x1(10Gbps), 2 x USB2.0 2 x RJ45 1 x Line out&Mic in (2 in 1) 1 x DC-IN |
| 内部接口 Internal I/O | 1 x LVDS(default): max resolution up to 1920 x 1200@60Hz or 1 x eDP: up to 4096x2160@60Hz (BOM option with LVDS) 4 x USB 2.0 1 x 8 bit GPIO 2 x RS232/422/485, 2 x RS232 1 x SATA 3.0 1 x F_Panel (Power LED, HDD LED, Power button, reset button) |
| 扩展接口 Expansion | 1 x M.2 2230 E-Key (PCIe3.0 X1/USB2.0) for WiFi/BT module 1 x M.2 2242 M-Key (SATA3.0) for SSD 1 x Mini-PCIe slot (PCIe/USB2.0) for WIFI/BT/3G/4G module 1 x SIM slot for 3G/4G module |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | 12~24V DC-IN |
| 尺寸 Dimensions | 3.5" (146 x 105mm) |
| 操作系统 OS | Win11 64bit，Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 sec/min |
