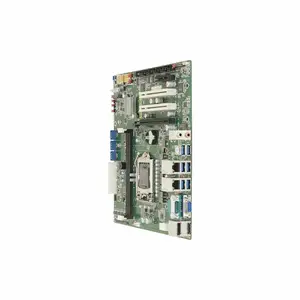

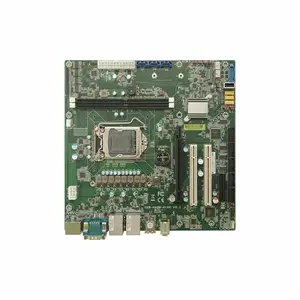

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H42M-A100 |
| 设备类型：工控电脑 |
Support Intel® 10th/11th Gen. CoreTM i3/i5/i7/i9、Pentium®、Celeron® Processor
Support 2 x DDR4 DIMM memory Slot, up to 64GB
Support HDMI/DP/VGA dual display
Support Ennoconn USB SR Pro Technology
Support dual Intel LAN, 13 x USB, 10 x COM (2 x RS232/422/485 with auto Flow, 8 x RS232)
Support 1 x PCIe X16, 1 x PCIe X4, 2 x PCI Slot
Support USB Power off under S5
| 处理器 Processor | Intel® 10th/11th Gen. Core ™ i3/i5/i7/i9, Pentium®, Celeron® Processor, LGA1200 Socket, TDP up to 65W |
| 芯片组 Chipset | Intel® H420E |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 2666/2933MHz, up to 64GB |
| 存储 Storage | 3 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0 signal) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I226V co-lay i226-LM GbE (10/100/1000/2500 M bps) 1 x Intel® I219LM GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S(colay with ALC897) HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

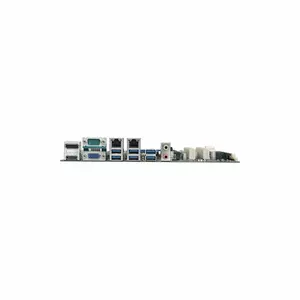

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP: max resolution up to 4096 x 2304@60Hz 2 x RJ45 6 x USB3.2 Gen1 1 x RS232/422/485 with Auto Flow 1 x Line-out, 1 x Mic-in, Line in(optional, need MOQ) |
| 内部接口 Internal I/O | 1 x RS232/422/485 with Auto Flow 8 x RS232 6 x USB2.0, 1 x USB2.0 (Type-A) 1 x 16 bit GPIO 1 x F_Audio 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse) |
| 扩展接口 Expansion | 1 x PCIe X16 (Gen3) 1 x PCIe X4 (Gen3) 2 x PCI 1 x M.2 (SATA3.0） |
| 信赖平台模块 TPM | Nuvoton TPM2.0(optional, need MOQ) |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 244 x 244 mm (9.6" x 9.6") |
| 操作系统 OS | Win11 64bit，Windows10 64Bit, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
