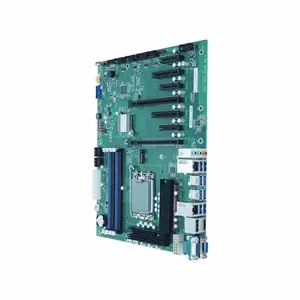

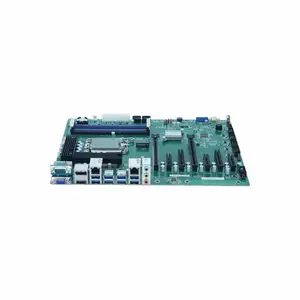

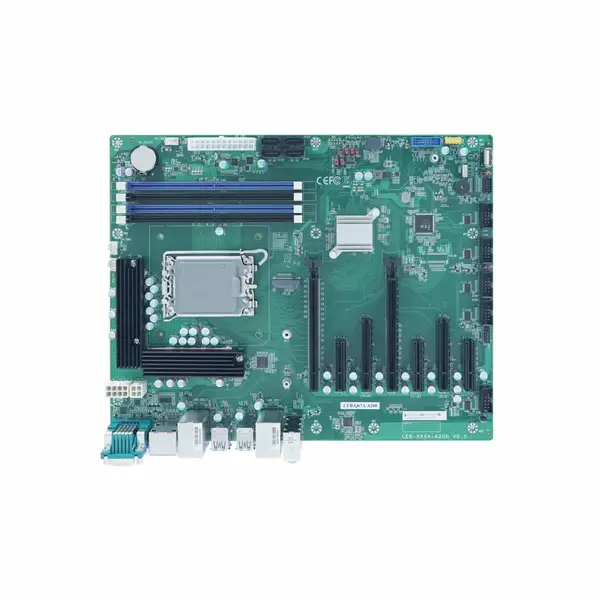

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-Q67A-A200 |
| 设备类型：工控电脑 |
Intel®12/13/14代酷睿 i9/i7/i5/i3/奔腾®/赛扬®处理器, 功耗支援到125W, 支持intel vPro
双通道4插槽 DDR5 ECC/Non-ECC 3600/4000/4400MHz, 192GB
支持VGA, HDMI2.0, DP++三屏显示
支持双Intel GbEs, USB3.2 Gen1/2, 8位GPIO
支持4个SATA3.0, RAID0/1/5/10
支持1个RS232/422/485和5个RS232串口
2 x PCIe x16 (x8 link) , 2 x PCIe x8（x4 link), 3 x PCIe x4
1个M.2 2242/2280(PCIe4.0 x4)
| 处理器 Processor | Intel® 12/13/14th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, TDP up to 125W |
| 芯片组 Chipset | Q670 |
| 内存 Memory | 4 x DDR5 Non-ECC 3600/4000/4400 MHz U-DIMM Slot, up to 192GB (up to 128GB with 12th CPU) 1DIMM per channel： up to 4400MHz 2DIMM per channel： 1R up to 4000MHz, 2R up to 3600MHz[1] |
| 存储 Storage | 4 x SATA 3.0 (RAID 0/1/5/10), 1 x M.2( PCIe4.0 X4 NVMe ) 2242/2280 on CPU_M2 |
| 显示 Display | Intel® UHD Graphics |
| 网口 Ethernet | 1 x Intel® i219V GbE, 1 x Intel®I210-AT (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC897 HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

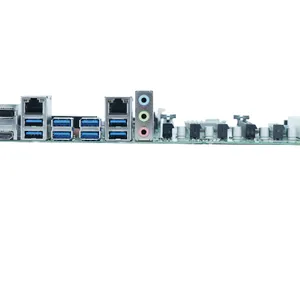

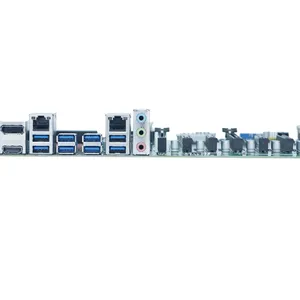

| 外部接口 Rear I/O | 1 x VGA: max resolution up to 1920x1200 @ 60Hz 1 x HDMI2.0: max resolution up to 3840x2160@60Hz 1 x DP++: max resolution up to 4096x2304 @ 60Hz 8 x USB3.2 Gen1 2 x RJ45 1 x RS232/422/485 (with auto flow control) 1 x Line-out, Line-in, Mic-in |
| 内部接口 Internal I/O | 5 x RS232 3 x USB2.0 (1 x Type-A) 2 x USB3.2 Gen1 (optional) 1 x 8 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x FP(power button,power led,reset,HDD led) |
| 扩展接口 Expansion | 2 x PCIe x16(1 x Gen 5 x8 link, 1 x Gen4 x8 link)[2] 2 x PCIe x8 (1 x Gen 4 x4 link，1 x Gen3 x4 link) 3 x PCIe x4 (1 x Gen 4 x4 link，1 x Gen3 x4 link , 1 x Gen3 x2 link) |
| 信赖平台模块 TPM | fTPM2.0(default) or dTPM2.0 by BOM option |
| 环境 Environment | 操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | Windows 11 64bit, Windows 10 64bit, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
