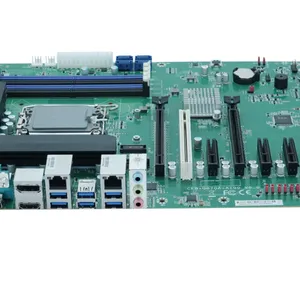

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-Q870A-A100 |
| 设备类型：工控电脑 |
Intel® Core™ Ultra 200S系列U9/U7/U5 处理器, 基础功耗支援到125W, 支持intel vPro
双通道4插槽 Non-ECC 4400/5600MHz DDR5 UDIMM，256GB
支持HDMI2.0/2 x DP++，三屏显示
支持双Intel GbEs, USB3.2 Gen1/2, 8位GPIO
支持4个SATA3.0, RAID0/1/5/10
支持1个RS232/485和5个RS232串口
2 x PCIe5.0 X16（x8 link) or 1 x PCIe5.0 x16(x16 link) 和4 x PCIe4.0 X4 (X4 link), 1个PCI
1个M.2(PCIe5.0 X4) 2242/2280 NVME SSD
| 处理器 Processor | Intel® Core™ Ultra 200S Series U9/U7/U5 Processor, LGA1851, Base power up to 125W |
| 芯片组 Chipset | Q870 |
| 内存 Memory | 4× Non-ECC DDR5 4400/5600MHz UDIMM/CUDIMM，up to 256GB 1 DIMM per channel: 1R/2R 5600MHz1 2 DIMM per channel: 1R 4800MHz/2R 4400MHz1 |
| 存储 Storage | 4 x SATA 3.0 (RAID 0/1/5/10), 1 x M.2 2242/2280 Key M (PCIe5.0 X4）for NVME SSD |
| 显示 Display | Intel® Iris® Xe Graphics |
| 网口 Ethernet | 1 x Intel® i219-LM GbE, 1 x Intel® i210-AT (10/100/1000Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

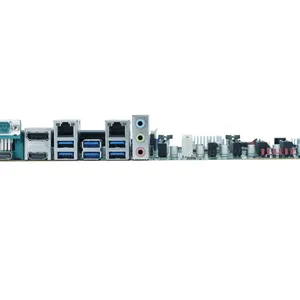

| 外部接口 Rear I/O | 1 x HDMI2.0: max resolution up to 3840 x 2160@60Hz 2 x DP++: max resolution up to 4096x2304 @ 60Hz 2 x USB3.2 Gen2 6 x USB3.2 Gen1 2 x RJ45 1 x RS232/485 (with auto flow control) 1 x Line-out, Line-in, Mic-in |
| 内部接口 Internal I/O | 5 x RS232 2 x USB3.2 Gen1 3 x USB2.0 (1 x Type-A) 1 x 8 bit GPIO 4 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN 1 x FP(power button,power led,reset,HDD led) |
| 扩展接口 Expansion | 2 x PCIe5.0 X16 (X8 link, default) or 1 x PCIe5.0 x16(x16 link, BOM selection) 4 X PCIe4.0 X4 (X4 link) 1 x PCI |
| 信赖平台模块 TPM | Nuvoton TPM2.0 |
| 环境 Environment | 操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | Windows 11, Windows 10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
