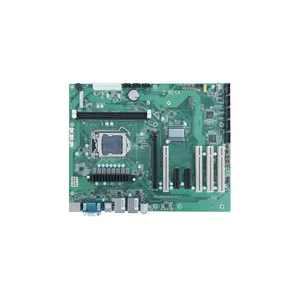

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H42A-A110 |
| 设备类型：工控电脑 |
支持Intel® 10th Gen. Core™ i3/i5/i7/i9, Pentium®, Celeron®高性能处理器
支持双通道DDR4 2666/2933 DIMM内存插槽, 内存容量可达64GB
支持VGA,HDMI, DP++双屏异显
支持双Intel GbEs、USB3.2 Gen1，8位GPIO
支持3个SATA
6 x COM(1 x RS232/485, 5 x RS232)
支持 1 x PCIe X16, 2 x PCIe X2, 4 x PCI 扩展槽
| 处理器 Processor | Intel® 10th Gen. Core ™ i3/i5/i7/i9, Pentium®, Celeron® Processor, LGA1200 Socket, TDP up to 125W |
| 芯片组 Chipset | Intel® H420E |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 2666/2933MHz, up to 64GB |
| 存储 Storage | 3 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0 signal) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® KTI226V co-lay KTI226LM GbE (10/100/1000/2500 Mbps) 1 x Intel® I219V GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S(colay with ALC897) HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

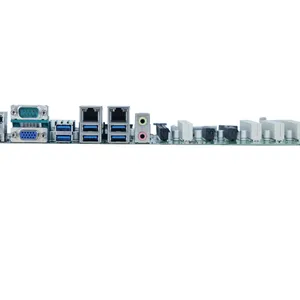

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP++: max resolution up to 4096 x 2304@60Hz 2 x RJ45 6 x USB3.2 Gen1 1 x RS232 1 x Line-out, 1 x Mic-in |
| 内部接口 Internal I/O | 1 x RS232/485 4 x RS232 2 x USB2.0, 1 x USB2.0 (Type-A) 1 x 8 bit GPIO 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 3 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN |
| 扩展接口 Expansion | 1 x PCIe3.0 X16 (X16link) 2 x PCIe3.0 X4 (X2 link) 4 x PCI 1 x M.2 2242/2280 (SATA3.0 signal) |
| 信赖平台模块 TPM | Nuvoton TPM2.0(optional, need MOQ) |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | Win11 64bit，Windows10 64Bit, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
