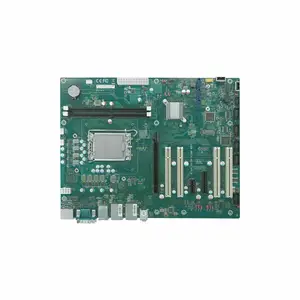

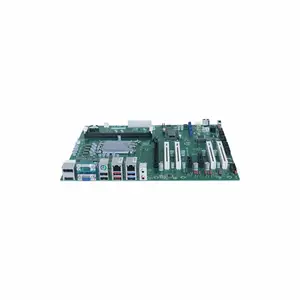

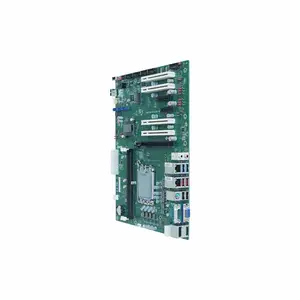

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H61A-A100 |
| 设备类型：工控电脑 |
Intel®12/13/14代酷睿 i9/i7/i5/i3/奔腾®/赛扬®处理器, 功耗支援到125W
双通道2插槽 DDR4 2400/2666/2933/3200MHz, 64GB
支持VGA, HDMI2.0, DP++三屏显示
支持两Intel GbEs, USB3.2 gen1/2, 8位GPIO
支持3个SATA3.0
支持2个RS-232/422/485和4个RS232串联端口, 5V/12V电压输出
海岸线USB部分端口支援USB SR Pro技术
1 x PCIe X16 和1个PCIe X4 (X4 link), 1个PCIe X1, 4个PCI, 1个M.2(SATA3.0)2242/2280
| 处理器 Processor | Intel® 12th/13th/14th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, TDP up to125W |
| 芯片组 Chipset | H610E |
| 内存 Memory | 2 x DDR4 2400/2666/2933/3200 MHz U-DIMM Slot, up to 64GB |
| 存储 Storage | 3 x SATA 3.0, 1 x M.2 (SATA 3.0 signal)2242/2280 |
| 显示 Display | Intel® UHD Graphics 770 |
| 网口 Ethernet | 1 x Intel® i219-V GbE, 1 x Intel®226V/LM/IT(10/100/1000/2500 Mbps) |
| 音频 Audio | Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

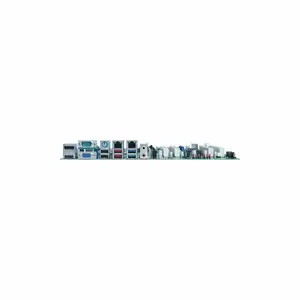

| 外部接口 Rear I/O | 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz 1 x RS232/422/485 with Auto Flow 2 x USB3.2 Gen2(LAN1) 2 x USB3.2 Gen1(LAN2) 2 x USB2.0 2 x RJ45 1 x PS/2(Mini-DIN-6) 1 x Line-out, Mic-in |
| 内部接口 Internal I/O | 1 x RS232/422/485 (with auto flow control), 4 x RS232 4 x USB2.0 (2 x Type-A) 1 x 8 bit GPIO 3 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN 1 x F_AUDIO 1 x FP(power button,power led,reset,HDD led) |
| 扩展接口 Expansion | 1 x PCIe X16 (Gen4) 1 x PCIe X4 (Gen3) 1 x PCIe X1 (Gen3) 4 x PCI |
| 信赖平台模块 TPM | Nuvoton TPM2.0(optional, need MOQ) |
| 环境 Environment | 操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | Win11 64bit，Windows 10 64bit, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
