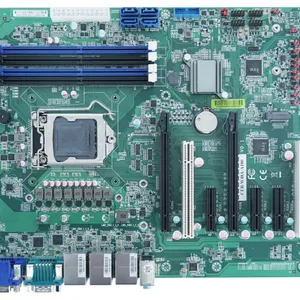

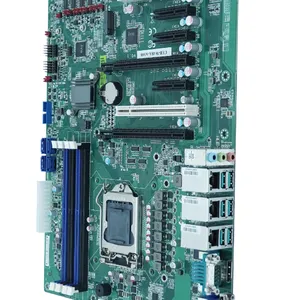

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-W48A-A100 |
| 设备类型：工控电脑 |
Intel®10代酷睿 i9/i7/i5/i3/至强®W处理器, 功耗支援到125W, 支持intel vPro
双通道4插槽 DDR4 ECC/Non-ECC 2400/2666/2933MHz,128GB (酷睿 i5/i7/i9 只支持Non-ECC)
支持VGA, DVI-D, DP++三屏显示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
支持4个SATA3.0, RAID0/1/5/10
支持2个RS232/422/485和2个RS232/485和2个RS232串联端口, 5V/12V电压输出
海岸线USB端口支援USB SR Pro技术
2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link)和3个PCIe X4 (X4 link), 2个PCI, 1个M.2(SATA3.0/PCIe 3.0 x 4) 2242/2280
| 处理器 Processor | Intel® 10th Gen Core ™ i9/i7/i5/i3/Xeon®W Processor, LGA1200, TDP up to 125W |
| 芯片组 Chipset | W480E |
| 内存 Memory | Dual Channel Quad DIMM Slot DDR4 ECC/Non-ECC 2400/2666/2933MHz,up to 128GB (Core™ i5/i7/i9 only support Non-ECC) |
| 存储 Storage | 4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4NVMe) 2242/2280 |
| 显示 Display | Intel® UHD Graphics 630 |
| 网口 Ethernet | 1 x Intel® i219-LM GbE, 2 x Intel® i210-AT (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

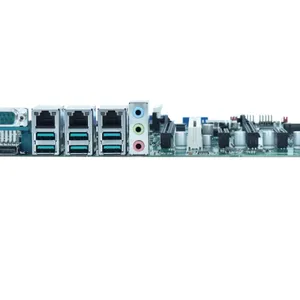

| 外部接口 Rear I/O | 1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz 6 x USB3.2 Gen2 3 x RJ45 1x RS232/422/485 (with auto flow control) 1 x Line-out, Line-in, Mic-in |
| 内部接口 Internal I/O | 1 x RS232/422/485 (with auto flow control) 2 x RS232/485 2 x RS232 8 x USB2.0 (1 x Type-A) 1 x 16 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x FP(power button,power led,reset,HDD led) |
| 扩展接口 Expansion | 2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link) 3 x PCIe3.0 X4 (X4 link) 2 x PCI 1 x M.2 (SATA3.0/PCIe3.0 x 4NVMe) |
| 信赖平台模块 TPM | Nuvoton TPM2.0(optional, need MOQ) |
| 环境 Environment | 操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | Windows 11，Windows 10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
