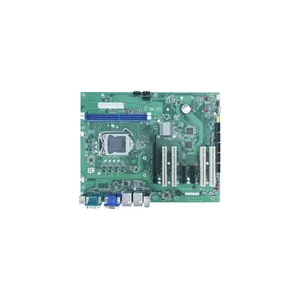

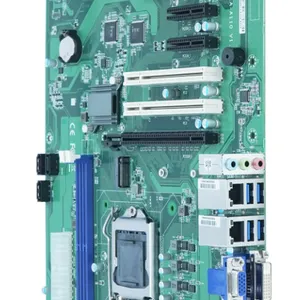

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H11A-A110 |
| 设备类型：工控电脑 |
Intel®6/7代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗支援到95W
双通道 DDR4 1866/2133/2400 MHz, 64GB
支持VGA,HDMI,DVI-D双屏异显
支持Intel GbEs, SATA3.0, USB3.0, 8位GPIO
支持1个RS232/485、5个RS232串联端口
1个PCIe X16 (Gen3)和2个PCIe X2, 和4个PCI 扩展口
| 处理器 Processor | Intel®6th/7th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W |
| 芯片组 Chipset | Intel® H110 |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 1866/2133/2400MHz, up to 64GB |
| 存储 Storage | 3 x SATA3.0,1 x M.2 2242/2280 (SATA3.0 signal) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I210AT (10/100/1000 Mbps) 1 x Intel® I219V GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S(colay with ALC897) HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

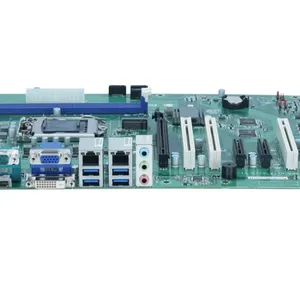

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x USB2.0, 4 x USB3.0 2 x RJ45 1x RS232 1 x Line-out, 1 x Line-in, 1 x Mic-in |
| 内部接口 Internal I/O | 1 x RS232/485 4 x RS232 3 x USB2.0 1 x 8 bit GPIO 3 x SATA3.0 |
| 扩展接口 Expansion | 1 x PCIe3.0 X16 (X16 link) 2 x PCIe X4 (X2 link) 4 x PCI 1 x M.2(SATA3.0 2242/2280) |
| 信赖平台模块 TPM | Nuvoton TPM1.2 (optional, need MOQ) |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 304.8 x 244 mm (12" x 9.6") |
| 操作系统 OS | 6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
