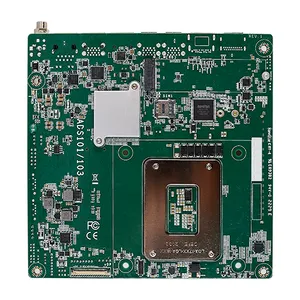

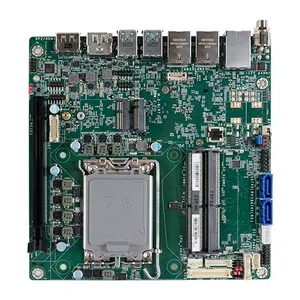

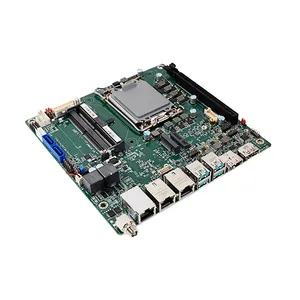

• BTL-S/14th/13th/12th Generation Intel® Core™ Processors

• 2 DDR4 3200MHz SODIMM up to 64GB

• Quad Displays: 2 DP++, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)

• Supports up to 4K/2K resolution

• Multiple expansion: 1 PCIe x16, 1 M.2 E Key (USB/PCIe), 1 M.2 M Key (PCIe/SATA), 1 M.2 B Key (PCIe/SATA/USB)

• Rich I/O: 1 Intel 2.5GbE, up to 2 Intel GbE, 2 COM, up to 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 2 SATA 3.0

• Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)

系统

处理器

Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W
Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W
Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W
Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W
Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W

Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors
Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W
Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W
Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W
Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 45W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

芯片组

ADS101/ADS103-R680E

Intel® R680E Chipset

ADS101/ADS103-Q670E

Intel® Q670E Chipset

ADS101/ADS103-H610E

Intel® H610E Chipset

内存

ADS101/ADS103-R680E

Two 260-pin SODIMM up to 64GB (ECC/Non-ECC)

Dual Channel DDR4 3200 MHz

ADS101/ADS103-Q670E

Two 260-pin SODIMM up to 64GB (Non-ECC)

Dual Channel DDR4 3200 MHz

ADS101/ADS103-H610E

Two 260-pin SODIMM up to 64GB (Non-ECC)

Dual Channel DDR4 3200 MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

2 x DP++
1 x LVDS/eDP
1 x DFI display extension port (DP/ HDMI/VGA available)
DP++: resolution up to 4096x2304 @60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz

四重显示

2 DP++ + LVDS/eDP + DFI display extension port (DP/HDMI/VGA available)

扩充

界面

ADS101/ADS103-R680E

1 x PCIe x16 (Gen 5) (Max. 75W)

1 x M.2 2230 E Key (USB/PCIe x1)

1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)

1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)

ADS101/ADS103-Q670E

1 x PCIe x16 (Gen 5) (Max. 75W)

1 x M.2 2230 E Key (USB/PCIe x1)

1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)

1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)

ADS101/ADS103-H610E

1 x PCIe x16 (Gen 5) (Max. 75W)

1 x M.2 2230 E Key (USB/PCIe x1)

1 x M.2 2280 M Key (PCIe Gen3 x1/SATA)

1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen1/USB 2.0)

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

ADS101/ADS103-R680E

LAN1: 1 x Intel® I226V PCIe(10/100/1000/2.5G speeds)

LAN2: 1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)

LAN3: 1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)

ADS101/ADS103-Q670E

LAN1: 1 x Intel® I226V PCIe(10/100/1000/2.5G speeds)

LAN2: 1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)

LAN3: 1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)

ADS101/ADS103-H610E

LAN1: 1 x Intel® I226V PCIe(10/100/1000/2.5G speeds)

LAN2: 1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)

LAN3: 1 x Intel® I219V PHY(10/100/1000 speeds)

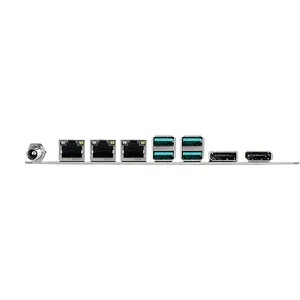

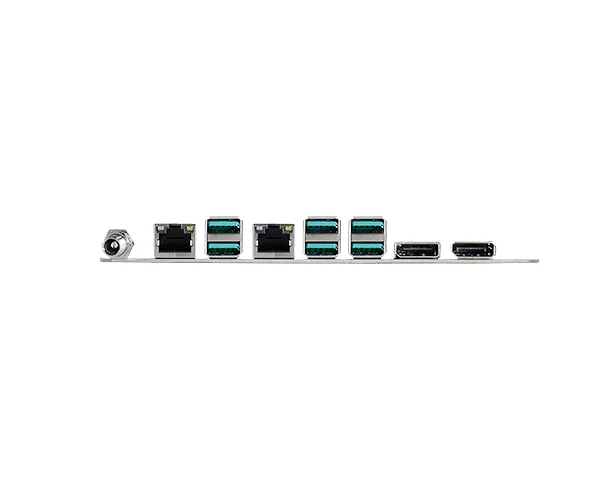

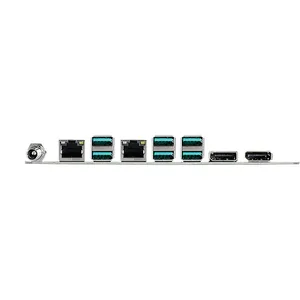

背板输入/输出

以太网络

1 x 2.5GbE (RJ-45)
1 x GbE (RJ-45) (2x by Opt.)

USB

ADS101/ADS103-R680E

4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)

ADS101/ADS103-Q670E

4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)

ADS101/ADS103-H610E

2 x USB 3.2 Gen2

1 x USB 3.2 Gen1

1 x USB 2.0

显示

2 x DP++
1 x DFI display extension for (DP/HDMI/VGA) (Opt.)

内部输入/输出

串行端口

2 x RS-232/422/485 (without power) (2.0mm pitch)

USB

ADS101/ADS103-R680E

4 x USB 2.0 (2.0mm pitch)

2 x USB 3.2 Gen1 (R680E/Q670E only)

ADS101/ADS103-Q670E

4 x USB 2.0 (2.0mm pitch)

2 x USB 3.2 Gen1 (R680E/Q670E only)

ADS101/ADS103-H610E

4 x USB 2.0 (2.0mm pitch)

显示

1 x LVDS header
1 x eDP connector

音效

1 x Front Audio Header

SATA

ADS101/ADS103-R680E

2 x SATA 3.0 (up to 6Gb/s)

1 x SATA Power

RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn., R680E/Q670E only)

ADS101/ADS103-Q670E

2 x SATA 3.0 (up to 6Gb/s)

1 x SATA Power

RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn., R680E/Q670E only)

ADS101/ADS103-H610E

2 x SATA 3.0 (up to 6Gb/s)

1 x SATA Power

DIO

1 x 8-bit DIO

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM2.0

电源

类型

ADS101: Single 12V +/-5% DC
ADS103: Wide Range 15~36V

端口

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)

耗能

Idle: i9-13900E 65W: 24V @ 3.14A (75.36W), 12V @ 5.52A (66.24W)
Max: i9-13900E 65W: 24V @ 4.82A (115.68W), 12V @ 9.38A (112.56W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Linux

环境指标

温度

Operating: -5°C ~ 65°C
Storage: -40°C ~ 85°C

湿度

Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH

MTBF

ADS101-R680DB 547,831 hrs @ 25°C; 320,230 hrs @ 45°C; 204,129 hrs @ 60°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm

安规认证

认证

CE, FCC Class B, RoHS, UKCA

装箱单

装箱单

1 ADS101/ADS103 motherboard
1 Serial ATA data & power cable w/lock (Length: 300mm), A81-002101-016G
1 COM port cable (Length: 250mm, 1 x COM port), A81-015011-001G
1 I/O shield
- w/ icon (3LAN/4USB), A49-ADS101-000G
- w/ icon (2LAN/6USB), A49-ADS101-010G
