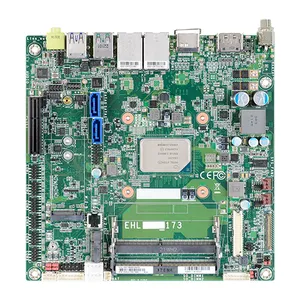

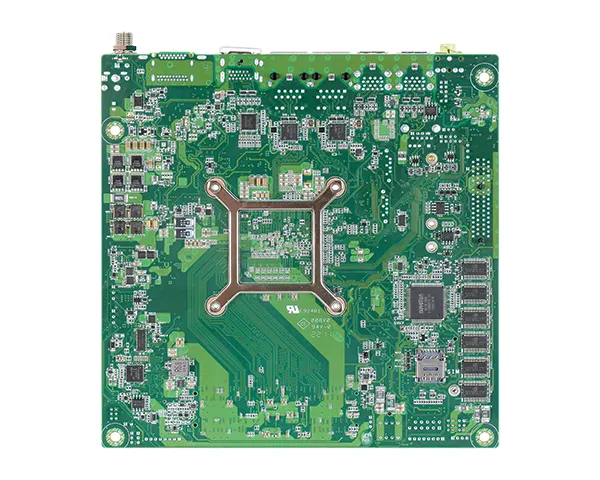

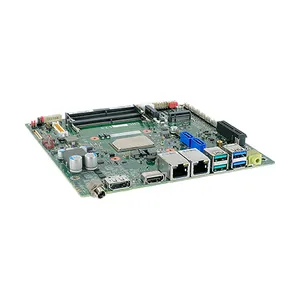

• Intel Atom® Processor X Series

• 2 DDR4 SODIMM up to 32GB

• 3 Independent Displays: 1 DP++/VGA, 1 HDMI/ DP++, 1 eDP/LVDS

• Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key, 1 PCIe x4 (x2 signal)

• Rich I/O: 2 x 2.5GbE, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 COM, up to 4 USB 2.0

• 15-Year CPU Life Cycle Support Until Q1&＃39; 36 (Based on Intel IOTG Roadmap)

系统

处理器

Intel Atom® X Series Processors, BGA 1493
Intel® Atom® x6425E Processor, Quad Core, 1.5M Cache, 2.0GHz (3.0GHz), 12W
Intel® Atom® x6211E Processor, Dual Core, 1.5M Cache, 1.3GHz (3.0GHz), 6W
Intel® Atom® x6413E Processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W
Intel® Celeron® J6413 Processor, Quad Core, 1.5M Cache, 1.8GHz (3.0GHz), 10W

内存

Two 260-pin SODIMM up to 32GB
Dual channel DDR4 up to 3200MHz (in-band ECC support in embedded/industrial SKU)

BIOS

AMI SPI 256Mbit (supports UEFI boot only)

显示

控制器

Intel® UHD Graphics

特性

OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9

显示器

1 x DP++ (Colay VGA, MOQ required)
1 x HDMI 2.0 (Colay DP++, MOQ required)
1 x eDP/LVDS (eDP in priority)
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2560x1600 @ 60Hz
LVDS: resolution up to 1920x1200 @ 60Hz

三重显示

DP++/VGA + HDMI/DP++ + eDP/LVDS

扩充

界面

1 x PCIe x4 (Default: PCIe x1 signal with M.2 B key active/ Opt: PCIe x2 signal with M.2 B key inactive)
1 x M.2 2242/2280/3052 B Key (PCIe x1/SATA/USB2.0)
1 x M.2 2230 E Key (PCIe x1/USB2.0)
1 x Nano SIM socket (connected to M.2 B key)

音讯

音讯编译码器

Realtek ALC888

以太网路

PHY

-40~85°C: 2 x Intel® I225IT (10/100/1000/2500Mbps) or
-5~65°C: 2 x Intel® I225LM (10/100/1000/2500Mbps)

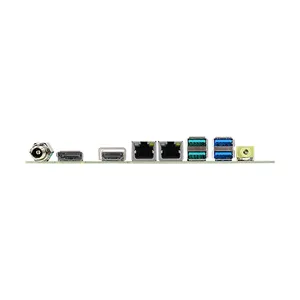

背板输入/输出

以太网络

2 x 2.5GHz RJ45

USB

2 x USB 3.2 Gen2
2 x USB 3.2 Gen1

显示

1 x HDMI /DP++ (opt., MOQ required)
1 x DP++ /VGA (opt., MOQ required)

音源

1 x Line-out

内部输入/输出

串行端口

2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 (2.0mm pitch) or
2 x USB 2.0 (2.00mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)

显示

1 x eDP LCD Panel Connector (Colay LVDS LCD, auto-detection)
1 x LCD/Inverter Power

音效

1 x S/PDIF
1 x Line-in/Mic-in

SATA

2 x SATA 3.0 (up to 6Gb/s) (one SATA port shared with M.2 B key)

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

fTPM (default)
dTPM (option)

电源

类型

EHL171

Single 12V +/-10% DC (DC-In jack by default)

EHL173

Wide Range 9~36V (4P vertical type by default)

端口

DC-in Jack
Right Angle Connector (4-pin)
Vertical Type Connector (4-pin)

耗能

Idle: Celeron J6413 10W: 12V @ 0.66A (7.92W)
Max: Celeron J6413 10W: 12V @ 1.98A (23.76W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 GAC

Linux

Linux

环境指标

温度

Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

EHL171

EHL171-CT-6427FE

MTBF 349,721 hrs @ 25°C; 236,303 hrs @ 45°C; 164,112 hrs @ 60°C; 82,397 hrs @ 85°C;

Calculation model: Telcordia Issue 4

Environment: GB, GC – Ground Benign, Controlled

EHL173

EHL173-CT-6425E

MTBF 430,473 hrs @ 25°C; 267,529 hrs @ 45°C; 176,755 hrs @ 60°C; 132,188 hrs @ 70°C; 84,901 hrs @ 85°C;

Calculation model: Telcordia Issue 4

Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: TBD

安规认证

认证

CE, FCC, RoHS, UKCA

装箱单

装箱单

• 1 EHL171/EHL173 motherboard
• 1 COM port cable (Length: 250mm, 1 x COM ports), A81-015011-001G
• 1 Serial ATA data & power cable w/lock(Length: 300mm), A81-002013-000G
• 1 Heat sink
　-(Height: 32mm) for Wide Temp X series CPU, A71-008157-020G
　-(Height: 32mm) for Normal Temp J series CPU, A71-008157-030G
