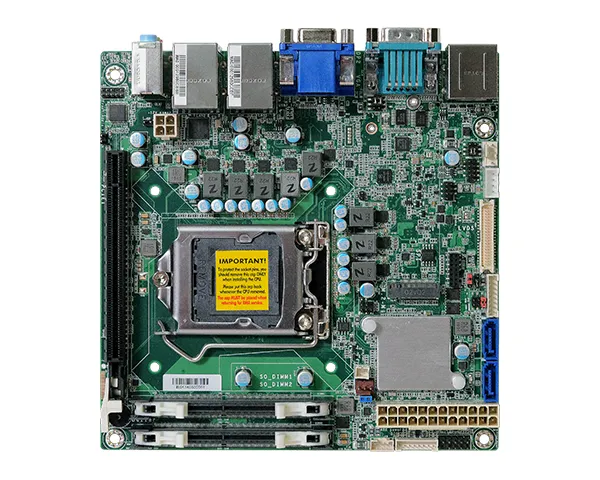

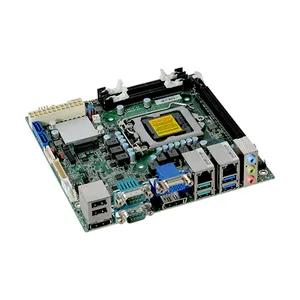

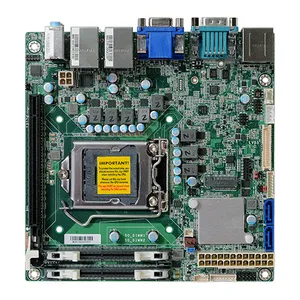

• 8th/9th Generation Intel® Core™ Processors

• 2 DDR4 2400/2666MHz SODIMM up to 32GB

• Three independent display: LVDS + VGA + DP++, LVDS + DP++ + DP++, VGA + DP++ + DP++

• DP++ resolution supports up to 4096x2304 @ 60Hz

• Multiple Expansions: 1 PCIe x16 Gen 3, 1 M.2 2230 E Key, 1 M.2 2280 M Key

• Storage: 2 SATA 3.0

• Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1

• 15-Year CPU Life Cycle Support Until Q3&＃39; 34 (Based on Intel IOTG Roadmap)

系统

处理器

9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 95W
Intel® Xeon E-2278GE Processor (Core 8; Max speed 4.7 GHz; TDP 80W) (support ECC memory)
Intel® Core i9-9900K Processor (Core 8, Max speed 5.0 GHz; TDP 95W) (Non-LTS)
Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W)
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) (support ECC memory)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) (support ECC memory)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 95W
Intel® Xeon E-2176G Processor (Core 6; Max speed 4.7 GHz; TDP 80W) (support ECC memory)
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC memory)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) (support ECC memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC memory)

芯片组

CS170-C246

Intel® C246 Chipset

CS170-Q370

Intel® Q370 Chipset

内存

CS170-C246

Dual Channel DDR4 2400/2666MHz

Two 260-pin ECC/non-ECC SODIMM up to 32GB (Core™ i5/i7 only support non-ECC)

CS170-Q370

Dual Channel DDR4 2400/2666MHz

Two 260-pin non-ECC SODIMM up to 32GB

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® UHD Graphics 630 (Pentium G5400 and Celeron G4900 support Intel® UHD Graphics 610)

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

1 x LVDS
1 x VGA
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz

三重显示

LVDS + VGA + DP++, LVDS + DP++ + DP++, VGA + DP++ + DP++

扩充

界面

1 x PCIe x16 (Gen3) (Max. 75W)
1 x M.2 2280 M Key (PCIe x4 Gen3/SATA) (support NVMe and Intel® Optane memory)
1 x M.2 2230 E Key (USB/PCIe x1 Gen2) (bottom side)

音讯

音讯编译码器

Realtek ALC888/887

以太网路

控制器

1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I210AT PCIe (10/100/1000Mbps)

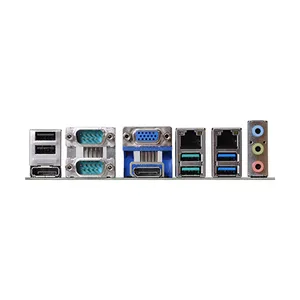

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

2 x RS-232 (DB-9)

USB

2 x USB 3.1 Gen2
4 x USB 3.1 Gen1

显示

1 x VGA (DB-15)
2 x DP++

音源

1 x Line-out
1 x Mic-in
1 x Line-in

内部输入/输出

USB

2 x USB 2.0

显示

1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power

音效

1 x Front Audio (2.00mm pitch)

SATA

2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5

DIO

1 x 8-bit DIO
1 x DIO Power

LPC

1 x LPC

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM2.0 (default)

电源

类型

ATX

端口

4-pin ATX 12V power
24-pin ATX power

耗能

Idle: i7-8700K 3.3V @ 0.11A (0.363W), 5V @ 0.45A (2.25W), 12V @ 0.31A (3.72W)
Max: i7-8700K 3.3V @ 0.13A (0.429W), 5V @ 1.2A (6W), 12V @ 10.35A (124.2W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit

Linux

Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

CS170-Q370: 634,945 hrs @ 25°C; 387,836 hrs @ 45°C; 254,993 hrs @60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Comtrolled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm

装箱单

装箱单

1 CS170 motherboard
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CVL000-A10G
