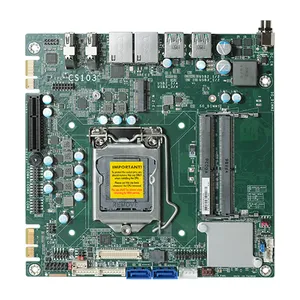

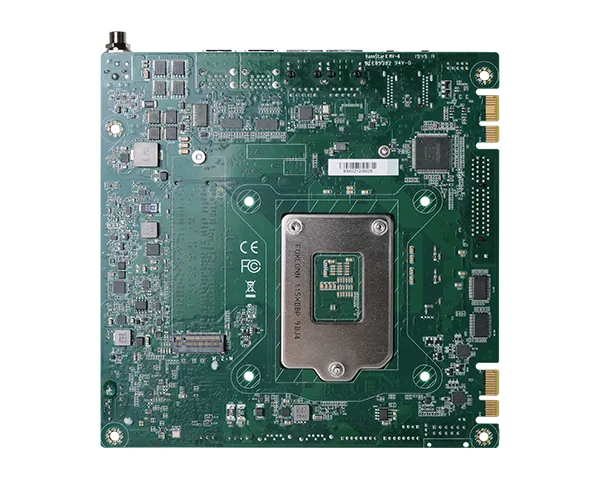

• 8th Gen Intel® Core™ with Intel® Q370/C246

• 2 DDR4 2400/2666MHz SODIMM up to 32GB

• Three independent displays: LVDS + DP++ + DP++

• DP++ resolution supports up to 4096x2304 @ 60Hz

• Multiple Expansions: 1 PCIe x4 Gen 3, 1 M.2 2280 M Key, 1 M.2 2230 E Key

• Storage: 2 SATA 3.0

• Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0

• 15-Year CPU Life Cycle Support Until Q2&＃39; 33 (Based on Intel IOTG Roadmap)

系统

处理器

9th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) (support ECC memory)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) (support ECC memory)
8th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC memory)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) (support ECC memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC memory)

芯片组

Intel® Q370/C246 Chipset

内存

Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400/2666MHz (support ECC memory by C246)

BIOS

AMI SPI 128Mbit

显示

控制器

Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

1 x LVDS
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz

三重显示

DP++ +DP++ + LVDS

扩充

界面

1 x PCIe x4 (Gen 3)
2 x DFI proprietary extension bus for PCIe/PCI expansion
1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)
1 x M.2 2230 E Key (USB/PCIe)

音讯

音讯编译码器

Realtek ALC888S-VD2-GR

以太网路

控制器

1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I210AT PCIe (10/100/1000Mbps)

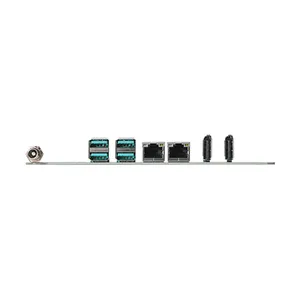

背板输入/输出

以太网络

2 x GbE (RJ-45)

USB

4 x USB 3.1 Gen2

显示

2 x DP++

内部输入/输出

串行端口

2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 (2.0mm pitch)

显示

1 x LVDS

音效

1 x Front Audio (2.0mm pitch)

SATA

2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
RAID 0/1/5

DIO

1 x 8-bit DIO

LPC

1 x LPC

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM 2.0

电源

类型

9-36V DC-in

端口

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)

耗能

Idle: i7-8700 65W: 19V @ 0.61A (11.59W)
Max: i7-8700 65W: 19V @ 5.74A (109.06W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit

Linux

Linux

环境指标

温度

Operating: -5 to 65°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

CS103-C246: 604,132 hrs @ 25°C; 359,766 hrs @ 45°C; 232,819 hrs @ 60°C; 172,632 hrs @ 70°C
CS103-Q370: 604,132 hrs @ 25°C; 359,766 hrs @ 45°C; 232,819 hrs @ 60°C; 172,632 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm

装箱单

装箱单

• 1 CS103 motherboard
• 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
• 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
