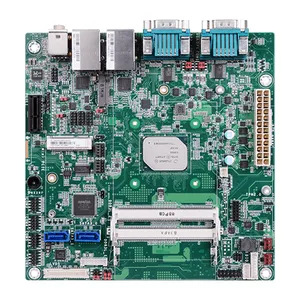

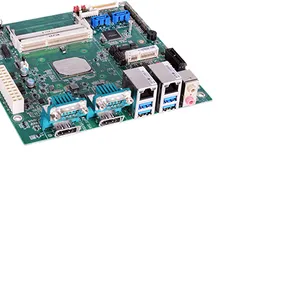

• Intel® Atom™ Processor E3900 Mini-ITX

• 2 DDR3L 1867MHz SODIMM up to 8GB

• Three independent displays: (VGA/DP++) + (DP++) + (LVDS/eDP)

• Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 6 USB 2.0

• Multiple expansion: 1 M.2 M Key, 1 PCIe x1 (Gen 2), 1 Full-Sized Mini PCIe

• 15-Year CPU Life Cycle Support Until Q4&＃39; 31 (Based on Intel IOTG Roadmap)

系统

处理器

Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® N4200 Processor, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4 GHz), 6W

内存

Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1867MHz

BIOS

SPI 64Mbit (supports UEFI boot only)

显示

控制器

Intel® HD Graphics GT Series

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

显示器

1 x VGA/DP++
1 x DP++
1 x LVDS/eDP
VGA: resolution up to 2560x1600 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz

三重显示

VGA + DP++ + LVDS
VGA + DP++ + eDP
DP++ + DP++ + LVDS
DP++ + DP++ + eDP

扩充

界面

1 x PCIEx1 (Gen2, signal share w/M.2)
1 x M.2 M key (support 2242/2280, PCIE&SATA signal, default SATA)
1 x Full-size Mini PCIe (PCIe2.0/USB2.0)(USB3.1 Gen 1)(opt.)

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

-40 to 85°C: 2 x Intel® I210IT PCIe (10/100/1000Mbps) or
0 to 60°C: 2 x Intel® I211AT PCIe (10/100/1000Mbps)

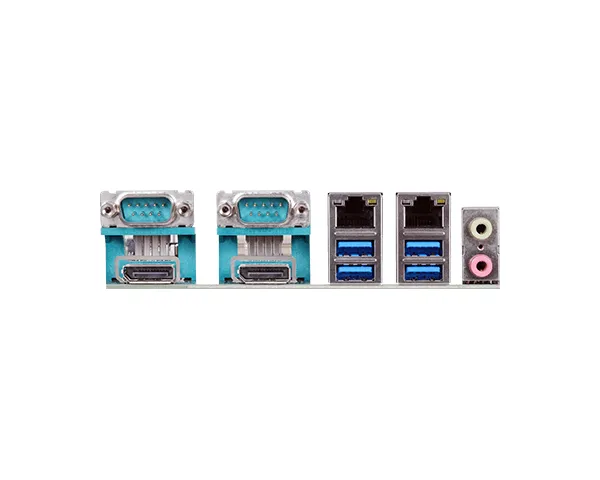

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

2 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

4 x USB 3.0

显示

1 x VGA/DP++
1 x DP++

音源

1 x Line-out
1 x Line-in (available upon request)
1 x Mic-in

内部输入/输出

串行端口

4 x RS-232 (2.0mm pitch)

USB

6 x USB 2.0 (2.0mm pitch)

显示

1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector
1 x LCD/intverter Power

音效

1 x S/PDIF

SATA

2 x SATA 3.0 (up to 6Gb/s) colay with M.2 M key

DIO

1 x 8-bit DIO

LPC

1 x LPC (supports LPC EXT-RS232/RS485 module)

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM 2.0 (opt.)

电源

类型

ATX

端口

24-pin ATX power

耗能

TDP: 6~12W

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统 (UEFI Only)

Windows 10 64bits (LTSB)
Linux

环境指标

温度

Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

357,197 hrs @ 25°C; 206,214 hrs @ 45°C ; 130,208 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 3.00mm

装箱单

装箱单

1 AL170 motherboard
1 I/O shield A49-AL1700-010G (VGA/DP++) or A49-AL1700-000G (DP++/DP++)
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Heat sink
- for E series CPU (0 to 60°C/-40 to 85°C) A71-008106-000G
- for N series CPU (0 to 60°C) A71-008101-020G
