| 产品特性：工业主板 | 品牌：DFI | 型号：CS101-Q370/C246 |
| 设备类型：工控电脑 |

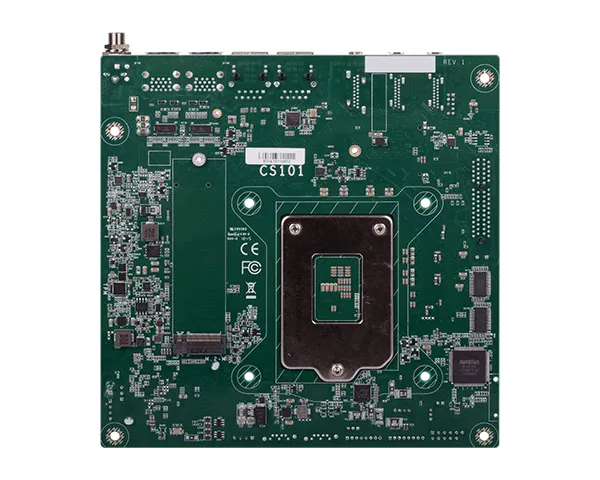

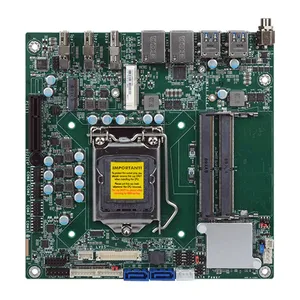

9th/8th Gen Intel® Core™ with Intel®Q370/C246
2 DDR4 2666MHz SODIMM up to 32GB
Three independent displays: DP++ +DP++ +HDMI, DP++ +DP++ +LVDS/eDP, DP++ +HDMI+LVDS/eDP
Multiple Expansions: 1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1 M.2 2230 E Key
Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0
DP++ resolution supports up to 4096x2304 @ 60Hz
Storage: 2 SATA 3.0
15-Year CPU Life Cycle Support Until Q2&＃39; 33 (Based on Intel IOTG Roadmap)
系统
处理器
9th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core i7-9700K Processor (Core 8; Max speed 3.6 GHz; TDP 95W)
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) (support ECC memory)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) (support ECC memory)
8th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC memory)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) (support ECC memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC memory)
芯片组
Intel® Q370/C246 Chipset
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz (C246 support ECC)
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP1.2: resolution up to 4096x2304 @ 60Hz
三重显示
DP++ +DP++ +HDMI, DP++ +DP++ +LVDS/eDP, DP++ +HDMI+LVDS/eDP
扩充
界面
1 x PCIe x4 (Gen 3)
1 x Full-size Mini PCIe (co-lay with mSATA)
1 x M.2 2280 M Key (PCIe x4/SATA) (Support NVMe and Intel® Optane memory)
1 x M.2 2230 E Key (USB/PCIe)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
1 x Intel® I210AT PCIe (10/100/1000Mbps)

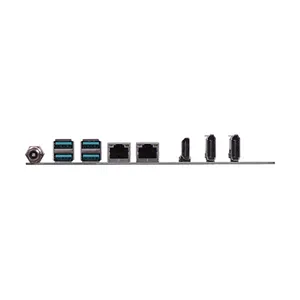

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB 3.1 Gen2
显示
1 x HDMI
2 x DP++
内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (RS-232 w/ power)(2.0mm pitch)
USB
4 x USB 2.0
显示
1 x LVDS Connector
1 x eDP (available upon request)
音效
1 x Front Audio
SATA
2 x SATA 3.0 (up to 6Gb/s) (RAID 0/1/5)
1 x SATA Power
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM 2.0
电源
类型
Single 12V +/-5% DC
端口
DC-in Jack
Straight Type Connector (4-pin) (available upon request)
耗能
Idle: i7-9700K 95W: 12V @ 0.96A (11.52W)
Max: i7-9700K 95W: 12V @ 13.4A (160.8W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
CS101-Q370: 590,510 hrs @ 25°C; 349,867 hrs @ 45°C; 225,814 hrs @ 60°C
CS101-C246: 590,510 hrs @ 25°C; 349,867 hrs @ 45°C; 225,814 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
安规认证
认证
CE, FCC, RoHS, UL, UKCA
装箱单
装箱单
1 CS101 motherboard
1 Serial ATA data with power cable (Length: 300mm): A81-002013-000G
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
