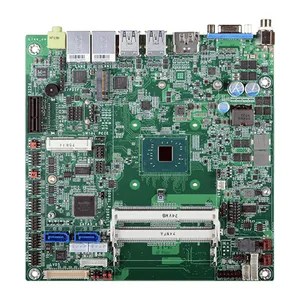

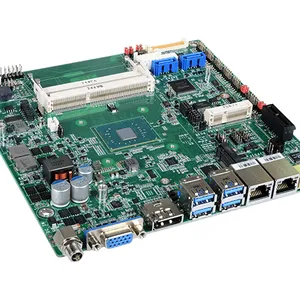

• Intel® Atom™ 处理器 E3900 Mini-ITX

• 2 DDR3L 1867MHz SODIMM 至 8GB

• 三个独立显示: (VGA/DP++) + (DP++) + (LVDS/eDP)

• 多重扩充: 1 M.2 B Key, 1 PCIe x1, 1 Mini PCIe

• 丰富I/O: 2 Intel 网口, 6 串口, 4 USB 3.0, 5 USB 2.0

• 15年CPU长期支持至Q4&＃39; 31 (Based on Intel IOTG Roadmap)

系统

处理器

Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® N4200 Processor, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W

内存

Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1867MHz

BIOS

Insyde SPI 128Mbit (supports UEFI boot only)

显示

控制器

Intel® HD Graphics GT Series

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

显示器

1 x VGA/DP++
1 x DP++
1 x LVDS/eDP
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz

三重显示

VGA + DP + LVDS
VGA + DP + eDP
DP + DP + LVDS
DP + DP + eDP

扩充

界面

1 x PCIe x1 (Gen 2)
1 x M.2 B Key 2242/2280 (PCIE/SATA/USB)
1 x Full-size Mini PCIe (PCIe/USB)

音讯

音讯编译码器

Realtek ALC888S-VD2-GR

以太网路

控制器

-40~85°C: 2 x Intel® I211IT/I210IT PCIe (10/100/1000Mbps) or
0-60°C: 2 x Intel® I211AT/I210AT PCIe (10/100/1000Mbps)

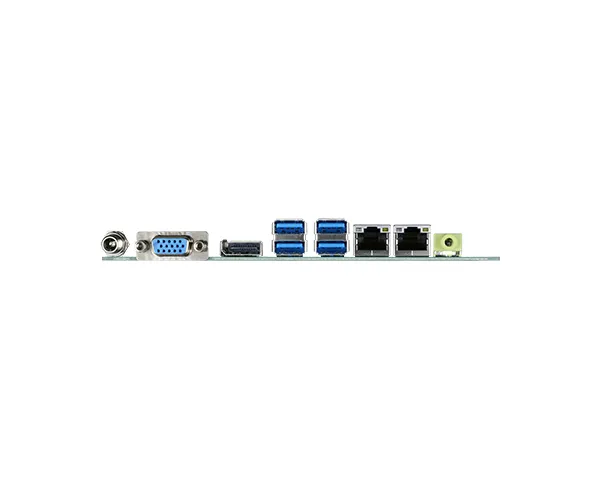

背板输入/输出

以太网络

2 x GbE (RJ-45)

USB

4 x USB 3.0

显示

1 x DP++
1 x VGA/DP++

音源

1 x Line-out

内部输入/输出

串行端口

2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 (2.0mm pitch)
1 x USB 2.0 (2.54mm pitch) or 1 x Vertical USB 2.0 (type A) (available upon request)

显示

1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector

音效

1 x S/PDIF
1 x Audio (Line-out/Mic-in)

SATA

2 x SATA 3.0 (up to 6Gb/s)

DIO

1 x 8-bit DIO

LPC

1 x LPC (supports LPC EXT-RS232/RS485 module)

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM2.0 (opt.)

电源

类型

Single 12V +/-10% DC (AL171)
Wide Range 15~36V (AL173)

端口

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)

耗能

Idle: E3950 12W: 12V @ 0.59A (7.08W)
Max: E3950 12W: 12V @ 2.23A (26.76W)

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统 (UEFI Only)

Windows 10 IoT Enterprise (64-bit)
Linux

环境指标

温度

Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

AL171: 364,946 hrs @ 25°C; 201,162 hrs @ 45°C ; 122,570 hrs @ 60°C
AL173: 358,096 hrs @ 25°C; 197,806 hrs @ 45°C ; 119,639 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 16.34mm
Bottom Side: 3.30mm

安规认证

认证

CE, FCC, RoHS, UL

装箱单

装箱单

1 AL171/AL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 Heatsink
