| 产品特性：工业主板 | 品牌：DFI | 型号：CB-2617 |
| 设备类型：工控电脑 |

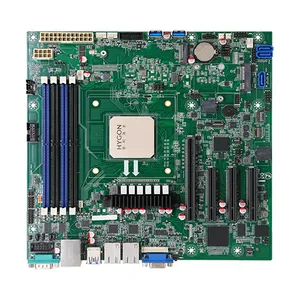

HYGON C86-4G 3490 Processor Series
4 DDR5 UDIMM up to 128GB
Dual Displays: 1 VGA, 1 VGA (opt.)
Multiple Expansion: 1 PCIe x16, 1 PCIe x8, 2 PCIe x4, 1 M.2 M key, MINI-PCIE
Rich I/O: 2 Intel GbE, 1 IPMI LAN, 2 COM, 6 USB 3.2 Gen1, 4 USB 2.0
Wide Temperature: Operating: 0 to 60°C / Storage: -20 to 75°C
系统
处理器
HYGON C86-4G 3490 Processor Series
内存
Four UDIMM up to 128GB
Dual Channel DDR5 up to 5200 MHz
BIOS
Byosoft BIOS
基板管理控制器 (BMC)
ASPEED AST2600 (IPMI 2.0 support)
显示
显示器
1 x VGA (DB15)
1 x VGA (opt. pin header share Rear IO VGA)
VGA: resolution up to 1920x1200 @ 60Hz
扩充
界面
1 x PCIe x16 (Gen 4) (1 x16 signals or 1 x8 signals)
1 x PCIe x8 (Gen 4) (N/A or 1 x8 signals)
--Support PCIE1/PCIE2 : single at x16(PCIE1)/NA(PCIE4)
--Support PCIE1/PCIE4 : dual at x8(PCIE1)/x8(PCIE4)
2 x PCIe x8 (Gen 4) (2 x4 signals)
1 x M.2 2280 M key (SATA or PCIe Gen4 x4 support) (SATA signal share M.2, PCIE x4 signal share PCIE#3 x8 slot)
1 x MINI-PCIE (PCIe/USB 2.0/WIFI/Bluetooth support)
以太网路
控制器
1 x Realtek® RTL8211FS (IPMI support)
2 x Intel® I210AT

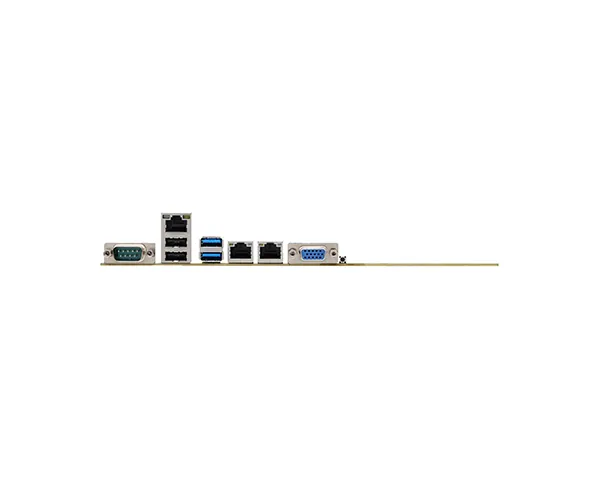

背板输入/输出
以太网络
2 x 1GbE (RJ-45)
1 x IPMI LAN (RJ-45)
串口
1 x COM1 RS232 (DB9)
USB
2 x USB 3.2 Gen1
2 x USB 2.0
显示
1 x VGA (DB15)
内部输入/输出
串行端口
1 x COM2 RS232 Header
USB
4 x USB 3.2 Gen1
2 x USB 2.0
SATA
3 x SATA 3.0 (up to 6Gb/s)
1 x M.2 (opt.)
DIO
8, GPIO
LED
1 x BMC LED
1 x System power LED
1 x Power button LED
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10/11 64bit
Kylin OS
Linux
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -20 to 75°C
湿度
Operating: 5 to 95% RH (No condensation)
机械结构
尺寸
microATX Form Factor
243.8mm x 243.8mm
高度
PCB: 1.6mm
Top Side: <19.0mm
Bottom Side: <4.0mm
装箱单
装箱单
• 1 CB-2617 motherboard
• 1 I/O shield, A49-RAP310-000G
