• AMD® Ryzen™ 9000/7000/EPYC 4005 Series with AMD B650 chipset

• 4 DDR5 UDIMM up to 128GB

• Triple displays: 1 VGA, 1 DP++, 1 HDMI

• Supports 4K resolution

• Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 1 M.2 M key, 4 SATA 3.0

• Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0

• Typically supports 7-Year CPU Life Cycle Until Q1’32 (Based on AMD Roadmap)

• Support EXT-OOB (Full)

系统

处理器

AMD® Ryzen™ 9000/7000/EPYC 4005 Series AM5 Socket Processors, TDP support up to 65W
Ryzen™ 7 9700X (8 Cores, 32M Cache, up to 5.5 GHz); 65W (life cycle only to Q1&＃39; 29)
Ryzen™ 5 9600X (6 Cores, 32M Cache, up to 5.4 GHz); 65W (life cycle only to Q1&＃39; 29)
Ryzen™ 9 PRO 7945 (12 Cores, 64M Cache, up to 5.4 GHz); 65W
Ryzen™ 7 PRO 7745 (8 Cores, 32M Cache, up to 5.3 GHz); 65W
Ryzen™ 5 PRO 7645 (6 Cores, 32M Cache, up to 5.1 GHz); 65W
EPYC™ 4545P (16 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4465P (12 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4345P (8 Cores, 32M Cache, up to 5.5 GHz); 65W
EPYC™ 4245P (6 Cores, 32M Cache, up to 5.4 GHz); 65W

芯片组

AMD B650

内存

Four 288-pin UDIMM up to 128GB (ECC/Non-ECC)
Dual Channel DDR5 5200 MHz
*Speed support list follow User’s Manual

BIOS

AMI SPI 256Mbit

显示

控制器

Navi2 Graphics

特性

1WGP @2.2GHz max

显示器

1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz

三重显示

1 VGA + 1 DP++ + 1 HDMI 2.0

扩充

界面

2 x PCIe x16 (Gen 4, x16 or x8+x8)
－Support PCIE1/PCIE3 : single at x16(PCIE1)
－Support PCIE1/PCIE3 : dual at x8(PCIE1)/x8(PCIE3)
－Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Discrete Wifi 6E support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support)

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

2 x Intel® I226V

背板输入/输出

以太网络

2 x 2.5GbE (RJ-45)

串口

1 x RS232

USB

6 x USB 3.2 Gen 2
2 x USB 2.0

显示

1 x VGA
1 x DP++
1 x HDMI

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)

内部输入/输出

串行端口

1 x RS-232/422/485
2 x RS232

USB

2 x USB 3.2 Gen1
4 x USB 2.0 (colay vertical Type A)

音效

1 x Front Audio Header
1 x S/PDIF

SATA

4 x SATA 3.0
RAID 0/1/5/10

DIO

1 x 8-bit DIO

PS/2

1 x PS/2

SMBus/ I2C

1 x SMBus/ I2C

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Nuvoton TPM 2.0

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: Ryzen 9 PRO 7945: 3.3V @ 0.14A (0.462W); 5V @ 0.96A (4.8W); 12V @ 0.66A (7.92W)
Max.: Ryzen 9 PRO 7945: 3.3V @ 1.14A (3.762W); 5V @ 3.4A (17W); 12V @ 8.94A (107.28W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 11 Enterprise
Windows 10

Linux

Ubuntu 22.04

环境指标

温度

Operating: -5 to 65°C
Storage: -40 to 85°C

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

481,630 hrs @ 25°C; 277,744 hrs @ 45°C; 177,053 hrs @ 60°C; 130,262 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

microATX Form Factor
244mm (9.6") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 38mm
Bottom Side: 3mm

安规认证

认证

CE, FCC Class B, RoHS, UKCA

装箱单

装箱单

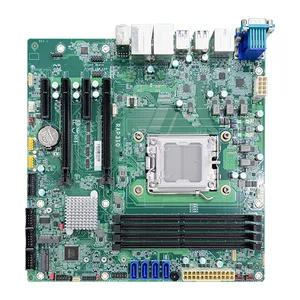

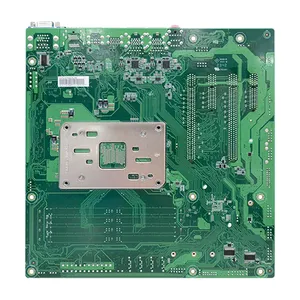

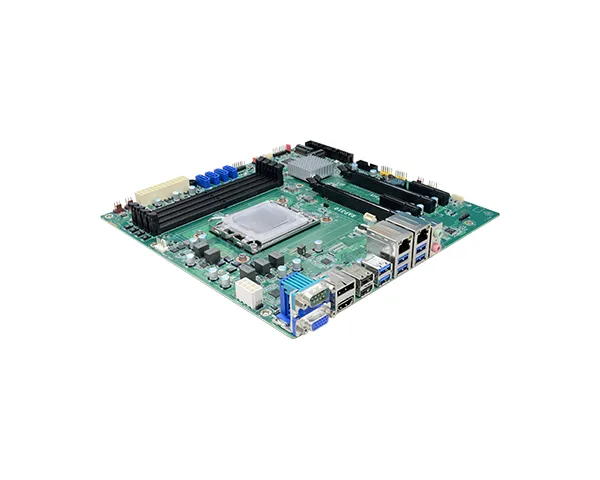

1 RAP310-B650 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports), A81-015026-023G
1 Serial ATA data cable (Length: 500mm), 332-553001-005G
1 I/O shield, A49-RAP310-000G
