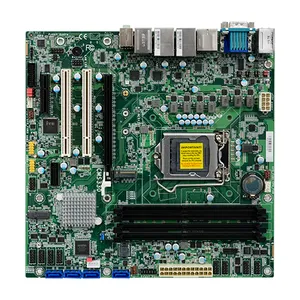

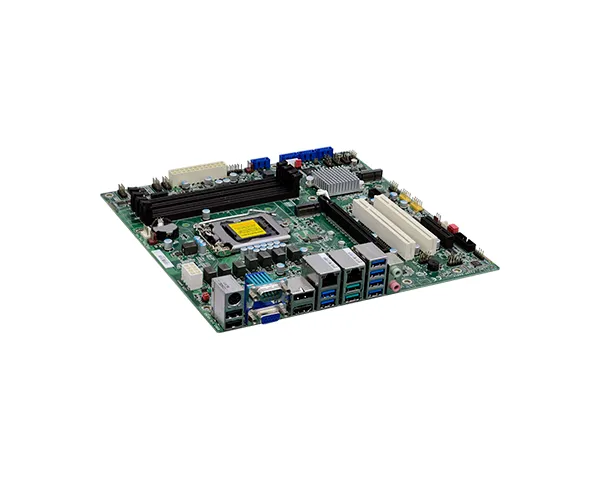

• 10th Gen Intel® Core™ with Intel® Q470E/H420E chipset

• 4 DDR4 UDIMM up to 128GB

• Three display ports: VGA, DP++, HDMI

• VGA resolution up to 1920x1200 @ 60Hz, DP++ resolution up to 4096x2160 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz

• Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, M.2 M & E key, 4 SATA 3.0

• Rich I/O: 2 GbE, 10 COM, 4 SATA, Q470E: up to 16 USB, H420E: up to 10 USB

• 10-Year CPU Life Cycle Support Until Q2&＃39; 30 (Based on Intel IOTG Roadmap)

• Support EXT-OOB (Lite)

系统

处理器

10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W

芯片组

CMS330-Q470E

Intel® Q470E Chipset

CMS330-H420E

Intel® H420E Chipset

内存

CMS330-Q470E

Four 288-pin Non-ECC UDIMM up to 128GB

Dual Channel DDR4 2400/2666/2933MHz

CMS330-H420E

Two 288-pin Non-ECC UDIMM up to 64GB

Dual Channel DDR4 2400/2666/2933MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® HD Gen 9 Graphics

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
1 x DP++
1 x HDMI 1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

多重显示

CMS330-Q470E

VGA + DP++ + HDMI

CMS330-H420E

VGA + DP++ / VGA + HDMI / DP++ + HDMI

扩充

界面

1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI

M.2

CMS330-Q470E

1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)

1 x M.2 2230 E key (USB 2.0/PCIe)

CMS330-H420E

N/A

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

CMS330-Q470E

1 x Intel® I210AT PCIe (10/100/1000Mbps)

1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps)(Core i9/ i7/i5 supports iAMT)

CMS330-H420E

1 x Intel® I210AT PCIe (10/100/1000Mbps)

1 x Intel® I219LM PHY (10/100/1000Mbps)

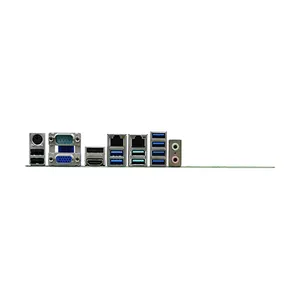

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

CMS330-Q470E

2 x USB 3.2 Gen2

2 x USB 3.2 Gen1 (Up to 6 x USB 3.2 Gen1, MOQ required)

2 x USB 2.0

CMS330-H420E

4 x USB 3.2 Gen1

2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

显示

1 x VGA
1 x DP++
1 x HDMI

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

内部输入/输出

串行端口

9 x RS-232 (2.54mm pitch)

USB

CMS330-Q470E

2 x USB 3.2 Gen1

4 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)

CMS330-H420E

2 x USB 3.2 Gen1

2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)

音效

1 x Front Audio Header
1 x S/PDIF

SATA

CMS330-Q470E

4 x SATA 3.0 (up to 6Gb/s, SATA 3)

(RAID 0/1/5/10)

CMS330-H420E

4 x SATA 3.0 (up to 6Gb/s, SATA 3)

DIO

1 x 16-bit DIO

LPC

1 x LPC

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Infineon TPM2.0 (opt., MOQ required)

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: i9-10900K: 3.3V @ 0.36A (1.19W); 5V @ 1.02A (5.1W); 12V @ 3.8A (45.6W)
Max.: i9-10900K:3.3V @ 0.38A (1.25W); 5V @ 1.82A (9.1W); 12V @ 15.64A (187.68W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 GAC

Linux

Linux Ubuntu 20.04

环境指标

温度

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

CMS330-Q470E

504,615 hrs @ 25°C; 283,232 hrs @ 45°C ; 176,865 hrs @ 60°C ; 128,658 hrs @ 70°C

Calculation Model: Telcordia Issue 4

Environment: GB, GC - Ground Benign, Controlled

CMS330-H420E

534,071 hrs @ 25°C; 303,942 hrs @ 45°C ; 191,219 hrs @ 60°C ; 139,612 hrs @ 70°C

Calculation Model: Telcordia Issue 4

Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

micro ATX Form Factor
244mm (9.6") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 33mm; Bottom Side: 3mm

安规认证

认证

CE, FCC Class B, UKCA

装箱单

装箱单

• 1 CMS330 motherboard
• 1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
• 1 Serial ATA data cable (Length: 500mm) 332-553001-005G
• 1 I/O shield A49-CMS330-100G
