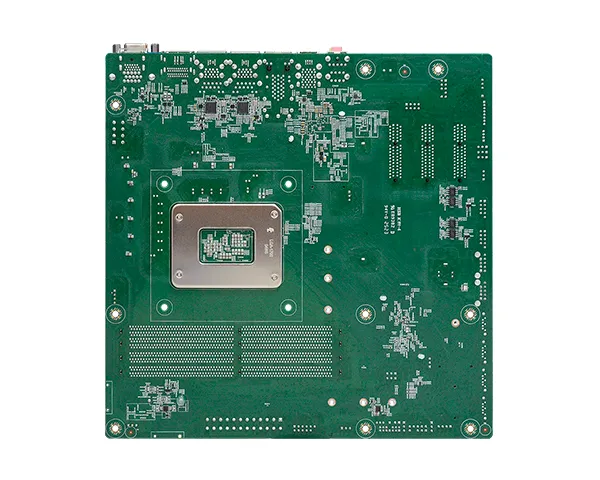

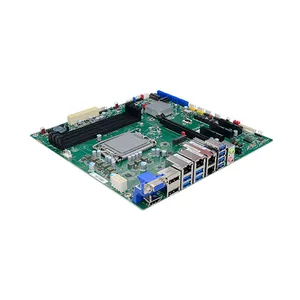

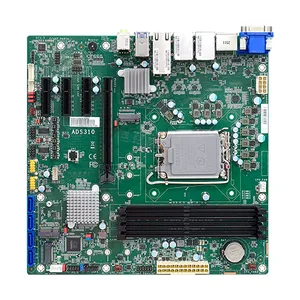

• BTL-S/14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset

• 4 DDR4 UDIMM up to 128GB

• Supports 4 independent displays: VGA, 2 DP++, HDMI 2.0a

• Supports 4K resolution

• Multiple expansion: 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0

• Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 3 USB 2.0

• Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)

• Support EXT-OOB (Lite)

系统

处理器

Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ 9 273PQE (12 Cores, 36M Cache, up to 5.9 GHz); 125W
Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W
Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W
Intel® Core™ 7 253PQE (10 Cores, 33M Cache, up to 5.7 GHz); 125W
Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W
Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 223PQE (8 Cores, 24M Cache, up to 5.5 GHz); 125W
Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W
Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W

Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W
Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W
Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W
Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W

14th Generation P-Core Only Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ i9-14901TE (8 Cores, 36M Cache, up to 5.5 GHz); 45W
Intel® Core™ i7-14701E (8 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ i7-14701TE (8 Cores, 33M Cache, up to 5.2 GHz); 45W
Intel® Core™ i5-14501E (6 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ i5-14501TE (6 Cores, 24M Cache, up to 5.1 GHz); 45W
Intel® Core™ i5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ i5-14401TE (6 Cores, 24M Cache, up to 4.5 GHz); 45W

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

芯片组

ADS310-R680E

Intel® R680E Chipset

ADS310-Q670E

Intel® Q670E Chipset

内存

ADS310-R680E

Four 288-pin DIMM up to 128GB (ECC/Non-ECC)

Dual Channel DDR4 3200 MHz

ADS310-Q670E

Four 288-pin DIMM up to 128GB (Non-ECC)

Dual Channel DDR4 3200 MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA, resolution up to 1920x1200 @ 60Hz
2 x DP++, resolution up to 4096×2304 @ 60Hz
1 x HDMI 2.0a, resolution up to 4096x2160 @ 24Hz

四重显示

VGA + 2 DP++ + HDMI

扩充

界面

ADS310-R680E

1 x PCIe x16 (Gen 5)

－ Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change

2 x PCIe x4 (Gen 4)

1 x PCIe x4 (Gen 3) (x4 signal)

ADS310-Q670E

1 x PCIe x16 (Gen 5)

－ Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change

2 x PCIe x4 (Gen 4)

1 x PCIe x4 (Gen 3) (x1 signal)

M.2

1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)
2 x Intel® E610-XAT2 (10 GBASE-T/1 GbE/100 Mbps) (no support WOL)

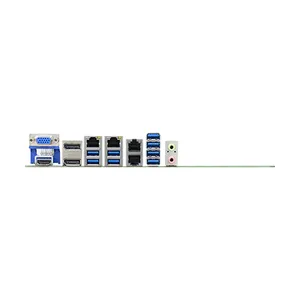

背板输入/输出

以太网络

2 x 2.5GbE
2 x 10GbE

USB

4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1

显示

1 x VGA
2 x DP++
1 x HDMI 2.0a

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)

内部输入/输出

串行端口

2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)

USB

ADS310-R680E

2 x USB 3.2 Key B box header (Gen2)

3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)

ADS310-Q670E

2 x USB 3.2 Key B box header (Gen1)

3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)

音效

1 x Front Audio Header
1 x S/PDIF

SATA

4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

PS/2

1 x PS/2 (2.54mm pitch)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Nuvoton TPM 2.0

电源

类型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Typical: i9-12900K: 3.3V @ 0.28A (0.92W); 5V @ 2.16A (10.8W); 12V @ 1.42A (17.04W)
Max.: i9-12900K 3.3V @ 1.19A (3.93W); 5V @ 3.91A (19.55W); 12V @ 26.86A (322.32W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Linux

环境指标

温度

Operating: -5°C ~ 65°C
Storage: -20°C ~ 70°C with RTC Battery; -40°C ~ 85°C without RTC Battery

湿度

Operating: 5% ~ 95% RH
Storage: 5% ~ 95% RH

MTBF

490,119 hrs @ 25°C; 270,102 hrs @ 45°C; 165,635 hrs @ 60°C; 118,767 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

机械结构

尺寸

microATX Form Factor
244mm (9.6") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 33.5mm
Bottom Side: 3.6mm

安规认证

认证

CE, FCC Class B, RoHS, UKCA

装箱单

装箱单

· 1 ADS310-R680E/Q670E motherboard
· 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
· 1 Serial ATA data cable (Length: 500mm) 332-553001-005G
· 1 I/O shield
－2LAN: A49-ADS630-010G
－4LAN: A49-ADS630-000G
