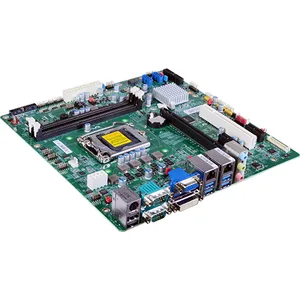

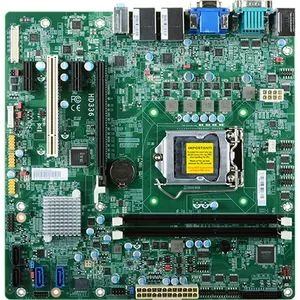

• 处理器: 4th Gen Intel® Core™

• 内存: 2 DDR3 DIMM up to 16GB

• 扩展介面: 1 PCIe x16, 2 PCIe x1, 1 PCI

• 双显显示输出: VGA+VGA, VGA+DVI-D, VGA+LVDS, DVI-D+LVDS

• I/O: 2 LAN, 10 COM, 4 USB 3.0, 至多 8 USB 2.0, 1 Parallel

• 存储: 2 SATA 3.0, 2 SATA 2.0

系统

处理器

LGA 1150 socket for 4th Gen Intel® Core™ processors (22nm process technology)
Intel® CoreTM i7-4790S (8M Cache, up to 4.0 GHz); 65W
Intel® CoreTM i7-4770S (8M Cache, up to 3.9 GHz); 65W
Intel® CoreTM i7-4770TE (8M Cache, up to 3.3 GHz); 45W
Intel® CoreTM i5-4590S (6M Cache, up to 3.7 GHz); 65W
Intel® CoreTM i5-4590T (6M Cache, up to 3.0 GHz); 35W
Intel® CoreTM i5-4570S (6M Cache, up to 3.6 GHz); 65W
Intel® CoreTM i5-4570TE (4M Cache, up to 3.3 GHz); 35W
Intel® CoreTM i3-4360 (4M Cache, 3.7 GHz); 54W
Intel® CoreTM i3-4350T (4M Cache, 3.1 GHz); 35W
Intel® CoreTM i3-4340TE (4M Cache, 2.6 GHz); 35W
Intel® CoreTM i3-4330 (4M Cache, 3.5 GHz); 54W
Intel® CoreTM i3-4330TE (4M Cache, 2.4 GHz); 35W
Intel® Pentium® G3420 (3M Cache, 3.2 GHz); 53W
Intel® Pentium® G3320TE (3M Cache, 2.3 GHz); 35W
Intel® Celeron® G1820 (2M Cache, 2.7 GHz); 53W
Intel® Celeron® G1820TE (2M Cache, 2.2 GHz); 35W

芯片组

Intel® H81 Express Chipset

内存

Two 240-pin DDR3 DIMM sockets
Supports DDR3 1333/1600MHz when operating at 1.5V
Supports dual channel memory interface
Supports up to 16GB system memory
DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC

BIOS

AMI SPI 64Mbit

显示

控制器

Intel® HD Graphics
Supports 20 Graphics Execution Units (EUs)

特性

OpenGL 4.0, DirectX 11.1
DirectX Video Acceleration (DXVA) support for accelerating video processing

显示器

1 x VGA
1 x DVI-D
1 x LVDS
VGA: 24-bit, resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz

双重显示

VGA+VGA
VGA+DVI-D
VGA+LVDS
DVI-D+LVDS

扩充

界面

1 PCIe x16 Gen 3 slot (PCIe 3.0)
2 PCIe x1 Gen 2 slots (PCIe 2.0)
1 PCI slot (PCI 2.3)

音讯

音讯编译码器

Realtek ALC888 5.1-channel High Definition Audio
Audio outputs: Mic-in/Center+Subwoofer, line-in/surround and line out

以太网路

控制器

2 x Intel® I211 PCI Express Gigabit Ethernet Controllers
Integrated 10/100/1000 transceiver
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

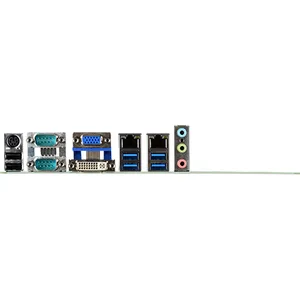

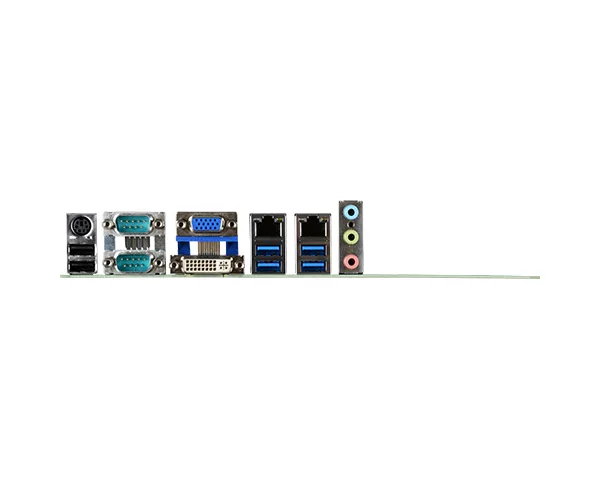

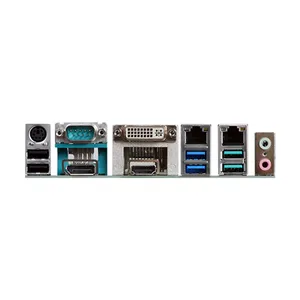

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

2 x RS-232 (DB-9)

USB

4 x USB 3.0 ports
2 x USB 2.0 ports

PS/2

1 mini-DIN-6 port for PS/2 mouse/keyboard

显示

2 x VGA;
1 x VGA + 1 x DVI-D;
1 x VGA + 1 x DVI-D + 1 x LVDS
2 x VGA + 1 x LVDS

音源

Line-in/Surround, Line-out, Mic-in/Center+Subwoofer jacks

内部输入/输出

串行端口

8 connectors for 8 external serial ports (2.0mm pitch)
- 1 RS232/RS422/485 (RS232 and/or power)
- 7 RS232

USB

3 x connectors for 6 external USB 2.0 ports; or
2 x connectors for 4 external USB 2.0 ports + 1 vertical USB 2.0/1.1 port*
XHCI Host Controller supports up to 2 super speed USB 3.0 ports

SATA

2 x SATA 3.0 ports with data transfer rate up to 6Gb/s
2 x SATA 2.0 ports with data transfer rate up to 3Gb/s
- SATA port 1 provides adequate space for SATA DOM
Integrated Advanced Host Controller Interface (AHCI) controller

其他 输入/输出

1 x Parallel connector
1 x Chassis intrusion connector
1 x Front panel connector
2 x Fan connectors

监视定时器

看门狗定时器

Software programmable from 1 to 255 seconds

安全性

信赖平台模块

Provides a Trusted PC for secure transactions
Provides software license protection, enforcement and password protection

电源

类型

ATX
• Supports ErP Lot6 power saving*
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery

端口

8-pin ATX 12V power
24-pin ATX power

耗能

HD332-H81X (VGA+DVI/VGA): 69.10W with i7-4770S at 3.10GHz and 2x 4GB DDR3 DIMM

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

• Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
Note: Windows 10 will be available upon request. Please contact DFI sales for more information.

环境指标

温度

Operating: 0 to 60°C
Storage: -20 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

机械结构

尺寸

microATX form factor 244mm (9.6") x 244mm (9.6")

安规认证

认证

CE, FCC Class B, RoHS

装箱单

装箱单

1 HD336-H81-A motherboard
1 I/O shield: A49-HD3320-010G

规格

特性

DAMAGE FREE INTELLIGENCE
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/3VSB/VBAT voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
