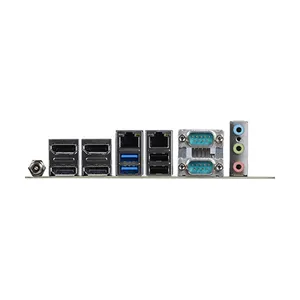

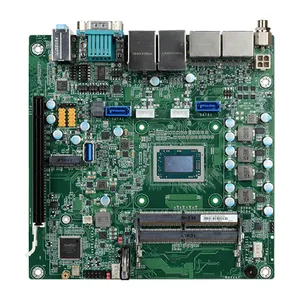

• AMD® Ryzen™ V1000/R2000/R1000 Mini-ITX

• 2 DDR4 3200MHz SODIMM 至 32GB

• 四个独立显示: DP++ + DP++ + DP++ + DP++

• 多元扩充: 1 PCIe x16, 1 M.2 M Key

• 丰富 I/O: 2 网口, 6 串口, 3 USB 3.0, 6 USB 2.0

• The AMD Ryzen R2000 10-Year CPU Life Cycle Support Until Q2&＃39; 32 (Based on AMD Roadmap)
  The AMD Ryzen R1000 10-Year CPU Life Cycle Support Until Q2&＃39; 29 (Based on AMD Roadmap)
  The AMD Ryzen V1000 10-Year CPU Life Cycle Support Until Q1&＃39; 28 (Based on AMD Roadmap)

系统

处理器

AMD® Ryzen™ Embedded V1807B, 4C/8T, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 45W (35-54W)
AMD® Ryzen™ Embedded V1756B, 4C/8T, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 45W (35-54W)
AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W (12-25W)
AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 15W (12-25W)
AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W
AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz),15W
AMD® Ryzen™ Embedded R2312, 3C/4T, 2MB Cache, 3CU, 2.7GHz (3.5GHz), 12~25W
AMD® Ryzen™ Embedded R2314, 6C/12T, 4MB Cache, 6 CU, 2.1GHz (3.5GHz), 12~35W
AMD® Ryzen™ Embedded R2514, 6C/12T, 4MB Cache, 8 CU, 2.1GHz (3.7GHz), 12~35W
AMD® Ryzen™ Embedded R2544, 4C/8T, 4MB Cache, 8 CU, 3.35GHz (3.7GHz), 35~54W

内存

Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 up to 3200MHz (ECC/non ECC support)

BIOS

AMI BIOS

显示

控制器

AMD® Radeon™ Vega Graphics

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz

扩充

界面

1x PCIE x16 slot
-V1000 Series (x8 signal)
-R1000 Series( x4 signal)
-R2000 Series (x8 signal) excludes R2312(x4 signal)
1 x M.2 2280 M Key (x4 signal with V1000 series, x2 signal with R1000 series) (support 2242 by BOM opt.)

音讯

音讯编译码器

Realtek ALC887-VD2-CG

以太网路

控制器

2 x Realtek RTL8111HN-CG (10/100/1000Mbps)

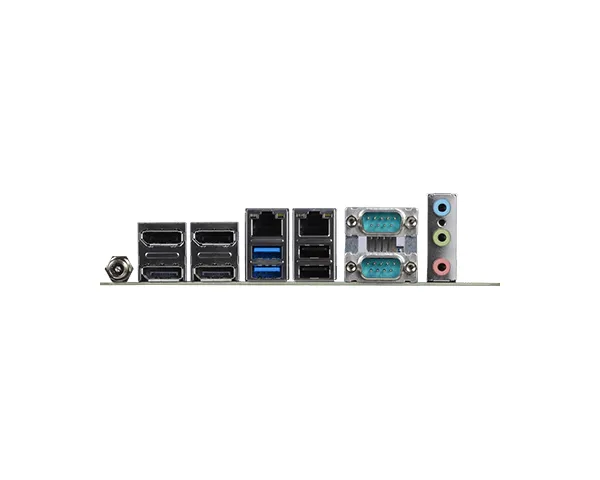

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)

USB

2 x USB 3.0
2 x USB 2.0

显示

4 x DP++ (V1000 series)
3 x DP++ (R1000 series)

音源

1 x Mic-in
1 x Line-in
1 x Line-out

内部输入/输出

串行端口

4 x RS-232 (2.0mm pitch) (TX/RX signal only)

USB

4 x USB 2.0 (2.54mm pitch)
1 x Vertical Type A USB 3.0 (V1000 series)
1 x Vertical Type A USB 2.0 (R1000 series)

音效

1 x S/PDIF
1 x Audio (Mic-in/Line-out)

SATA

2 x SATA 3.0 (up to 6GB/s) (with 7-pin VCC support)
2 x SATA Power

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM2.0

电源

类型

Single 12V +/-5% DC

端口

Straight Type Connector (4-pin)
DC-in Jack (available upon request)
Right Angle Connector (4-pin) (available upon request)

耗能

Idle: 1.2A@14.4W
Max: 6.1A@73.4W

RTC 电池

CR2032 Coin Cell

支持操作系统

支持操作系统

Windows 10
Linux

环境指标

温度

Operating: 0 to 60°C
Storage: -40 to 85°C

湿度

Operating: 10 to 90% RH
Storage: 10 to 90% RH

MTBF

536,492 hrs @ 25°C
334,201 hrs @ 45°C
223,268 hrs @ 60°C

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 40mm
Bottom Side: 5mm

安规认证

认证

CE, FCC, RoHS, UKCA

装箱单

装箱单

1 GH171 motherboard
1 I/O shield A49-GH1710-000G
1 Cooler
(For 25W, height:35mm) A71-108114-010G
(For 35W~54W, height:47mm) A71-108113-000G
