| 产品特性：工业主板 | 品牌：DFI | 型号：BT101/BT103 |
| 设备类型：工控电脑 |

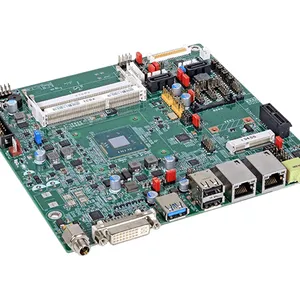

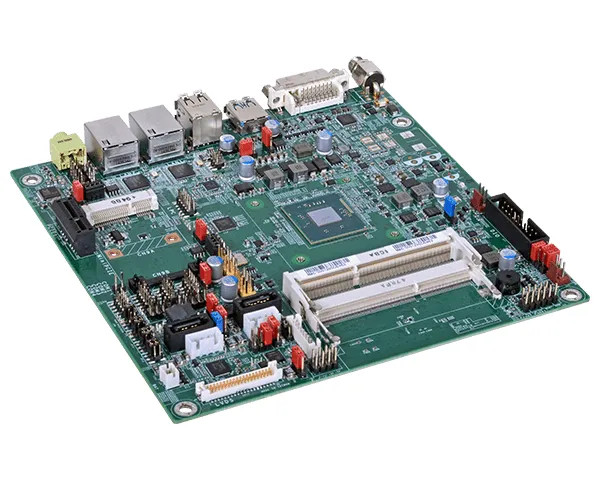

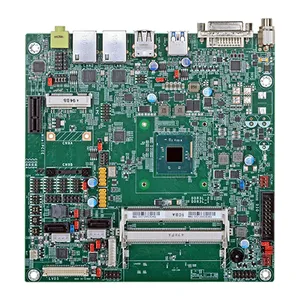

Intel® Atom™ E3800 Mini-ITX
2 DDR3L SODIMM 至 8GB
1 DVI-I, 1 LVDS
扩充插槽: 1 PCIe x1, 1 Mini PCIe, 1 SIM (Optional)
丰富I/O: 2 Intel 网口, 4 串口, 1 USB 3.0, 6 USB 2.0
丰富I/O: 2 Intel 网口, 4 串口, 1 USB 3.0, 6 USB 2.0
15年CPU长期支持至Q4&＃39; 28 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Atom™ Processor E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
Intel® Atom™ Processor E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Atom™ Processor E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® Processor J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
内存
Two 204-pin DDR3L SODIMM up to 8GB Dual channel DDR3L 1333/1066MHz
One 204-pin DDR3L SODIMM up to 4GB Single channel DDR3L 1066MHz
BIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics
特性
DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
显示器
1 x DVI-I
1 x LVDS
DVI-I: 24-bit, resolution up to 1920x1080 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
扩充
界面
1 x PCIe x1
1 x Mini PCIe
1 x SIM card
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)

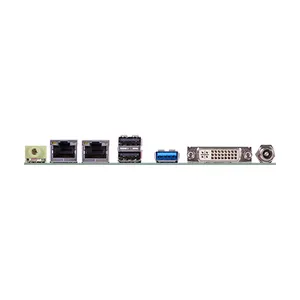

背板输入/输出
以太网络
2 x GbE (RJ45)
USB
2 x USB 2.0
1 x USB 3.0
显示
1 x DVI-I
音源
1 x Line-out
内部输入/输出
串行端口
1 x RS232/422/485 (RS232 and/or Power) (2.0mm pitch)
3 x RS232 (2.0mm pitch)
USB
4 x USB 2.0
显示
1 x LVDS
音效
1 x Line-out
1 x Mic-in
1 x S/PDIF
SATA
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
DC-in Jack
Vertical Type Connector (4-pin) (available upon request)
端口
Single 12V +/-10% DC (BT101)
Wide Range 19~24V (BT103)
耗能
BT101-BN-E45: 13.20W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM
BT103-BN-E45: 13.68W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM
支持操作系统
支持操作系统
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
环境指标
温度
Operating
: 0°C to 60°C - Atom, Celeron (Fanless)
: -20°C to 70°C - Atom (Fanless with air flow)
: -40°C to 85°C - Atom (Fanless with air flow)
Storage: -40°C to 85°C
湿度
Operating: 5% to 90% RH
Storage: 5 to 90% RH
机械结构
尺寸
Mini-ITX form factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 16.15mm
Bottom Side: 3.3mm
安规认证
认证
CE, FCC Class B, RoHS, UL
