| 产品特性：工业主板 | 品牌：DFI | 型号：WL171/WL173 |
| 设备类型：工控电脑 |

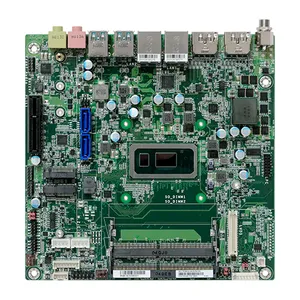

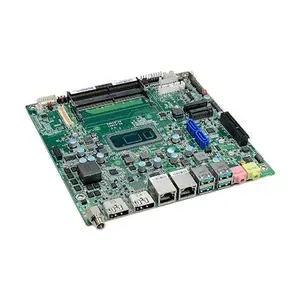

8th Generation Intel® Core™ Processor Mini-ITX
DDR4 2400MHz SODIMM up to 32GB
Three independent displays: LVDS/eDP + 2 DP++
DP++ resolution supports up to 4096x2304 @ 60Hz
Multiple expansion: 1 PCIe x4, 1 M.2 M Key (SATA/PCIe), 1 M.2 E key (PCIe/USB)
Storage: 2 SATA 3.0
Rich I/O: 2 Intel GbE, 4 USB 3.1, 4 USB 2.0
15-Year CPU Life Cycle Support Until Q2&＃39; 35 (Based on Intel IOTG Roadmap)
系统
处理器
8th Generation Intel® Core™ Processors, BGA 1528
Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
内存
2 x 260-pin SODIMM up to 32GB
DDR4 2400MHz/DDR4 2133MHz (for Celeron 4305UE)
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: H.264/AVC, VP8, VP9, VP9 10 Bit, H.265/HEVC 8 bit, H.265/HEVC 10 bit, MPEG2, MJPEG, VC-1
HW Encode: H.264/AVC, VP8*, VP9*, H.265/HEVC 8 bit, H.265/HEVC 10 bit, MPEG2, MJPEG (*VP8 and VP9 encode is not supported by Windows OS)
显示器
1 x LVDS/eDP (opt.)
2 DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
三重显示
LVDS/eDP + 2 DP++
扩充
界面
1 x PCIe x4 (Gen 3)
1 x M.2 2242/2260/2280 M key (PCIe x4/SATA) (Support NVMe and Intel® Optane memory)
1 x M.2 2230 E key (PCIe/USB)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 and vPro (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

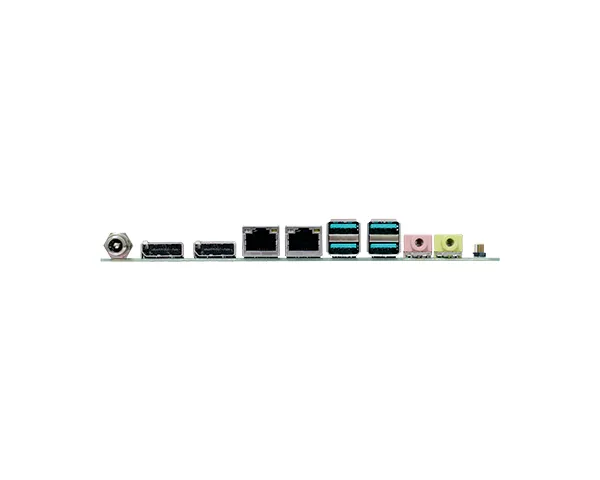

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB 3.1 Gen2
显示
2 DP++
音源
1 x Line-out
1 x Mic-in
内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
1 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS Header (default)
1 x eDP Connector (opt.)
音效
1 x Front Audio Header
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5
DIO
1 x 8-bit DIO
1 x DIO Power
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM 2.0
电源
类型
WL171
Single 12V +/-5% DC
WL173
Wide Range 9~36V
端口
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
Fedpra
CentOS 7 (with VESA graphic driver)
Yocto 2.6
Linux
环境指标
温度
Operating: -5 to 65°C / -20 to 70°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 16.5mm, Bottom Side: 3.5mm
装箱单
装箱单
1 WL171/WL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 Heat sink
