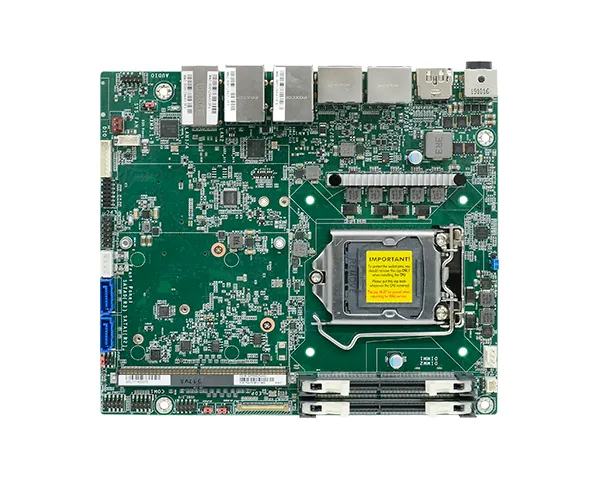

| 产品特性：工业主板 | 品牌：DFI | 型号：CS181-Q370 |
| 设备类型：工控电脑 |
8th/9th Generation Intel® Core™ Processors
2 DDR4 2400/2666MHz SODIMM up to 64GB
Multiple Displays: 1 eDP, 1 DP++, 4 DP (MXM)
Supports up to 4K/2K resolution
Multiple Expansions: 1 MXM Type-A/B/B+, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
Storage: 2 SATA 3.0
Rich I/O: 4 Intel GbE, 2 COM, 4 USB 3.2 Gen2, 2 USB 2.0
15-Year CPU Life Cycle Support Until Q1&＃39; 35 (Based on Intel IOTG Roadmap)
系统
处理器
9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W
Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W)
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W)
芯片组
Intel® Q370 Chipset
内存
Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2400/2666MHz
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 630 (Pentium G5400 and Celeron G4900 support Intel® UHD Graphics 610)
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x eDP
1 x DP++
4 x DP (support by MXM Type-A/B module)
eDP: resolution up to 4096x2304 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
多重显示
Onboard: eDP + DP++
Onboard+MXM module: eDP + DP++ + DP + DP + DP + DP
扩充
界面
1 x MXM Type-A/B/B+ (support MXM module) (provide 4 x independent DP at rear side)
1 x M.2 2280 M Key (PCIe Gen3 x4/SATA 3.0)(support NVMe and Intel® Optane memory)
1 x M.2 3042/3052 B Key (PCIe Gen3 x1 / USB 3.2 Gen1) (support 5G or storage module)
1 x M.2 2230 E Key (USB2.0/PCIe Gen3 x1) (support BT/Wi-Fi module)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I219LM PHY (10/100/1000Mbps)
3 x Intel® I210AT PCIe (10/100/1000Mbps) (port4~port6 provide by Lan hub)
背板输入/输出
以太网络
4 x GbE (RJ-45) (dual type connector) (port4~port6 provide by Lan hub)
USB
4 x USB 3.2 Gen2 (dual type-A connector)
显示
1 x DP++
电源
1 x DC Jack (mini-DIN)
内部输入/输出
串行端口
2 x RS232/RS422/RS485, Select by BIOS
USB
2 x USB 2.0 (2 x 5 10-pin 2.00mm pitch header)
显示
1 x eDP
1 x LCD/Inverter Power
音效
1 x Front Audio (2 x 5 10-pin 2.00mm pitch header)
SATA
2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5
DIO
1 x 8-bit DIO (1 x 8 8-pin 2.00mm pitch header)
1 x DIO Power (1x 4 4-pin 2.00mm pitch header)
LPC
1 x LPC (2 x 7 14-pin 2.00mm pitch female header)
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM2.0 (default)
电源
类型
Single 19V +/-5% DC
端口
DC-in Jack (mini-DIN)
耗能
Idle: i7-8700 65W: 19V @ 0.91A (17.29W)
Max: i7-8700 65W: 19V @ 7.34A (139.46W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
538,449 hrs @ 25°C; 324,118 hrs @ 45°C; 213,302 hrs @ 60°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
195mm (7.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 26mm, Bottom Side: 10mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 CS181 motherboard
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 COM port cable (Length: 250mm, 1 COM port) A81-015011-001G
1 USB port cable (Length: 200mm) A81-001032-016G
1 I/O shield A49-CS1811-100G
