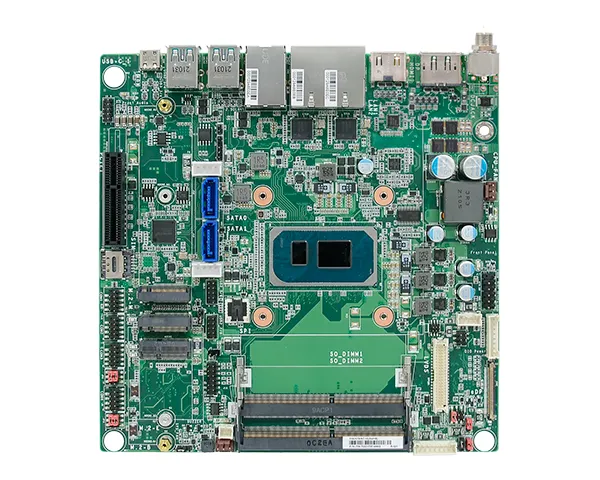

• 11th Gen Intel® Core™ Processors

• DDR4 3200MHz SODIMM up to 64GB

• Quad independent displays: 1 LVDS, 1 eDP, 1 DP++, 1 HDMI, 1 USB Type C

• Supports up to 4K/2K resolution

• Multiple expansion: 1 PCIe x4, 1 M.2 M Key, 1 M.2 B key (SATA/PCIe), 1 M.2 E key (USB), 1 Nano-SIM Socket

• Storage: 2 SATA 3.0

• Rich I/O: 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0

• 15-Year CPU Life Cycle Support Until Q3&＃39; 35 (Based on Intel IOTG Roadmap)

系统

处理器

11th Generation Intel® Core™ Processors
Intel® Core™ i7-1185GRE, Quad Core, 12M Cache, 1.8GHz (4.4GHz), 15~28W
Intel® Core™ i5-1145GRE, Quad Core, 8M Cache, 1.5GHz (4.1GHz), 15~28W
Intel® Core™ i3-1115GRE, Dual Core, 6M Cache, 2.2GHz (3.9GHz), 15~28W
Intel® Celeron® 6305E, Dual Core, 4M Cache, 1.8GHz (1.8GHz), 15W

内存

2 x 260-pin SO-DIMM up to 64GB (32GB per slot)
Dual channel DDR4 up to 3200MHz (Support in-band ECC)

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3/Celeron Processors

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

显示器

1 x LVDS
1 x eDP
1 x DP++
1 x HDMI
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)

LVDS: resolution up to 1920x1200 @60Hz
eDP: resolution up to 3840x2160 @60Hz
DP: resolution up to 3840x2160 @60Hz
HDMI: resolution up to 3840x2160 @60Hz
USB Type C: resolution up to 3840x2160 @60Hz

四重显示

LVDS + eDP + DP++ + HDMI + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)

扩充

界面

1 x PCIe x4 (PCIe Gen 3 x4)
1 x M.2 2242/2280 M Key (PCIe Gen4 x4) (Support NVMe and Intel® Optane memory) (Support DFI proprietary expansion module)
1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.1 Gen1) (Support 4G/5G and storage module) (Opt.: PCIe Gen3 x2)
1 x M.2 2230 E Key (USB2.0) (Support Intel® CNVi module only and Intel® vPro)
1 x Nano-SIM Socket (Connect to M.2 Key B for 4G/5G module)

**Note: Intel CNVi module Support List: AX201 & AC-9560

音讯

音讯编译码器

Realtek ALC888

以太网路

控制器

2 x Intel® I211AT/I210IT PCIe (10/100/1000Mbps)
1 x Intel® I225LM/I225IT PCIe (10/100/1000Mbps/2.5Gbps)

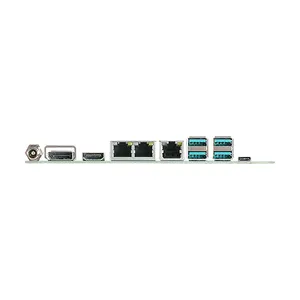

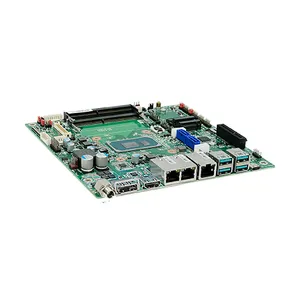

背板输入/输出

以太网络

2 x GbE
1 x 2.5GbE

USB

4 x USB 3.1 Gen2 (Type-A)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)

显示

1 x DP++
1 x HDMI

内部输入/输出

串行端口

2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch) (RS-232 w/ power)

USB

4 x USB 2.0 (2.0mm pitch)

显示

1 x LVDS
1 x eDP

音效

1 x Front Audio (2.0mm pitch)

SATA

2 x SATA 3.0 (up to 6Gb/s) (RAID 0/1)
2 x SATA Power

DIO

1 x 8-bit DIO
1 x DIO Power

其他 输入/输出

1 x CPU fan
1 x System fan

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

fTPM (default) / dTPM (option)

电源

类型

TGU171

Single 12V +/-5% DC

TGU173

Wide Range 9~36V

端口

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straightl Type Connector (4-pin) (available upon request)

耗能

Idle: TGU173-IE-1185GRE 15W: 12V@ 1.12A (13.44W)
Max: TGU173-IE-1185GRE 15W: 12V@ 6.26A (75.12W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 GAC

Linux

Linux

环境指标

温度

Operating: -5 to 65°C / -20 to 70°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

TGU171-IE-1185GRE 414,291 hrs @ 25°C; 254,601 hrs @ 45°C; 166,963 hrs @ 60°; 124,264 hrs @ 70°C;
TGU173-IE-1185GRE 397,863 hrs @ 25°C; 244,099 hrs @ 45°C; 160,483 hrs @ 60°; 119,765 hrs @ 70°C;
Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled

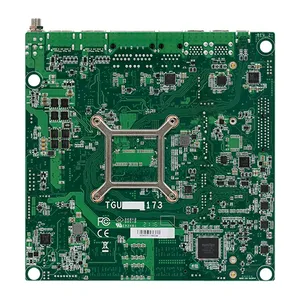

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 16.5mm, Bottom Side: 3.5mm

安规认证

认证

CE, FCC, RoHS, UKCA

装箱单

装箱单

1 TGU171/TGU173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 Heat sink
- (Wide/Normal Temp. -Cooler for 28W), A71-108158-000G (Default)
- (Normal Temp. Fanless HS for 15W), A71-008162-020G (By request)
- (Wide Temp. Fanless for 15W), A71-008162-030G (By request)
