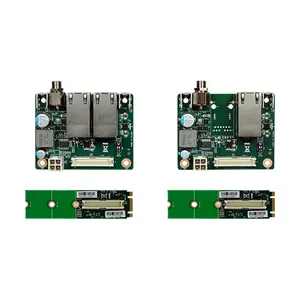

| 产品特性：工业主板 | 品牌：DFI | 型号：M.2-1PSE/2PSE |
| 设备类型：工控电脑 |
Port: 1 RJ45/2 RJ45
Interface: PCIe x1
Form Factor: M.2 B-M key 22mm x 80mm
装箱单
装箱单
• 1 M.2-PSE module
• 1 M.2-LAN module
• 1 cable (Length: 250mm): A81-009348-016G
规格
特性
◆ I/O CONNECTORS

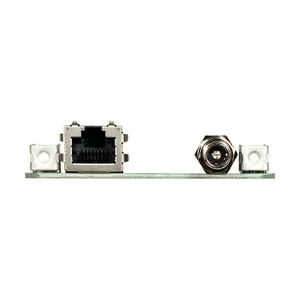

• M.2-1PSE: 1 connector for 1 external LAN port

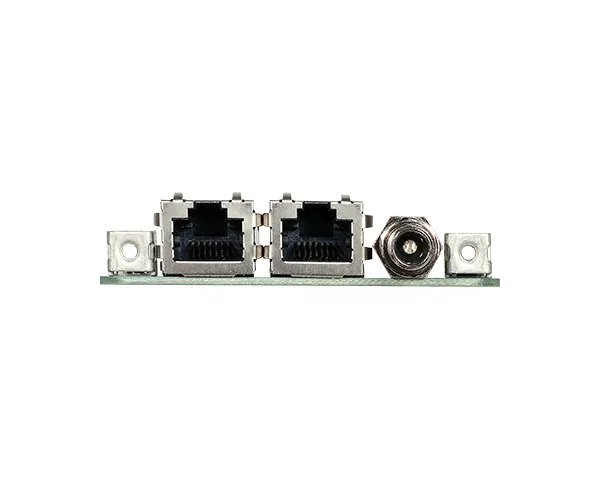

• M.2-2PSE: 2 connectors for 2 external LAN ports
◆ POWER INPUT
• 9V-36V: 4-pin header (default), DC jack (opt.)
◆ POWER OUTPUT
• Compliant IEEE 802.3af, up to 15.4W at 48V per PoE port
◆ MOUNTING
• Terminal (Default)
• Bracket (Optional)
◆ APPLIED MODELS: All DFI systems and boards with M.2 interface.
◆ TEMPERATURE
• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
◆ HUMIDITY: 5% to 90%
◆ DIMENSIONS: M.2 B-M key 22mm x 80mm
