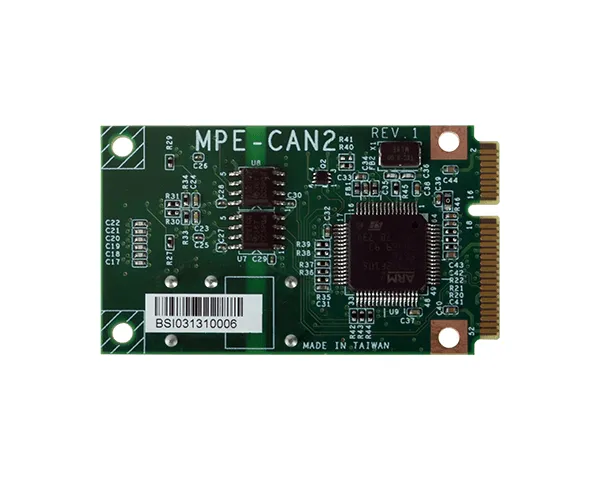

| 产品特性：工业主板 | 品牌：DFI | 型号：MPE-CAN2 |
| 设备类型：工控电脑 |
支持 CANBus 2.0A 跟 2.0B 规格 (11-bits 及 29bits Data Frames)
至 1M bits Baud Rate
符合 EN61000-4-5 2.5kV 电压防护
符合 IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV 耐压测试
40°C to 85°C 工作温度
扩充
界面
Mini-PCIe or USB
内部输入/输出
其他 输入/输出
One DB9 connector includes Dual CAN Bus and One J1708 ports
环境指标
温度
Operating: -40°C to 85°C
Storage: -40°C to 85°C
湿度
Operating: 10% to 85%
Storage: 10% to 90%
机械结构
尺寸
50.59mm x 30mm (1.99" x 1.18")
装箱单
装箱单
MPE-CAN2-MR:
• 1*7P/1mm to DB-9 Wire cable, L=210mm
MPE-CAN2-UF:
• 1*7P/1mm to DB-9 Wire cable, L=210mm
• 1*4P/1mm to 1*4P/2mm housing wire cable, L=210mm
• 1*4P/1mm to 1*4P/2.54mm housing wire cable, L=210mm
规格
特性
Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames
Up to 1M bits Baud Rate
Support high layer protocol as SAE J1939 / OBDII / J1708 / TTCAN ( Full CAN )
Complies with EN61000-4-5 2.5kV Surge protection
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
Option to be installed by USB interface when the mini PCIe slot is not present
