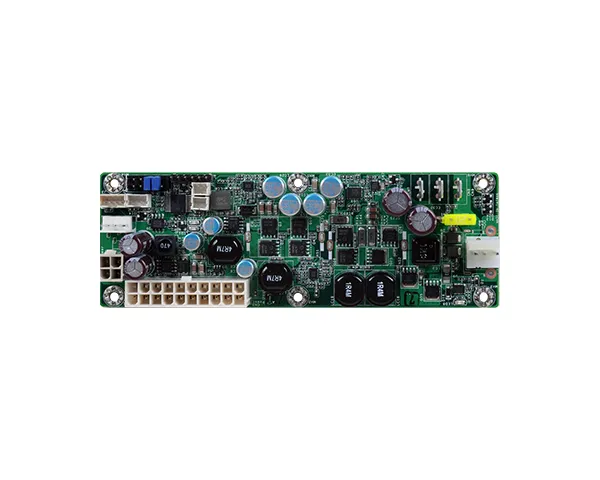

| 产品特性：工业主板 | 品牌：DFI | 型号：X102-DC30 |
| 设备类型：工控电脑 |
输出:1 3-pin DC-in 连接器, 1 4-pin ATX 12V 电源, 1 20-pin ATX 电源, 1 4-pin FDD 电源
输入: 6V - 30V, 输出: 120W
尺寸: 146mm x 50mm
规格
特性
Input Voltage: 6V - 30V
Maximum Output: 120W
CONNECTORS: One 3-pin DC-in Connector ；One 4-pin ATX 12V power；One 20-pin ATX power；One 4-pin FDD power
ENVIRONMENT: Temperature: 0-60°C / 32-140°F；Relative Humidity: 10%-90%
Output Voltage (power for DC voltages): +3.3V ±5%, 6.0A；+5V ±5%, 6.0A；5VSB ±5%, 1.5A；+12V ±5%, 5A；-12V ±10%, 0.15A
DIMENSIONS: 6 layers, 146mm x 50mm；height: 20mm
