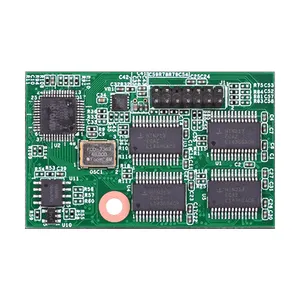

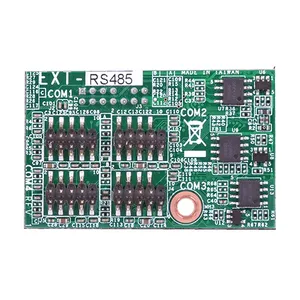

| 产品特性：工业主板 | 品牌：DFI | 型号：EXT-RS485 |
| 设备类型：工控电脑 |
芯片: NCT5104
输出: 4 串口 (RS232)
界面: LPC
尺寸: 48mm x 30mm (1.89" x 1.18")
LPC 扩充模块
规格
特性
CHIP: Main IC: NCT5104
I/O CONNECTORS: 1 LPC connector*, 4 connectors for 4 external RS485 serial ports (2.0mm pitch)
POWER INPUT AND OUTPUT: 3.3V/5V/5VSB via LPC connector
APPLIED MODEL: SD631-C236/Q170, SD630-H110, SD331-C236/Q170, SD331-Q170/H110, SD101/SD103-Q170/H110, SD100-Q170/H110, SU171/SU173, BW171/BW173
TEMPERATURE: Operating: 0°C to 60°C, Storage: -40°C to 85°C
HUMIDITY: 5% to 90%
DIMENSIONS: 48mm x 30mm (1.89" x 1.18")
*If you use a cable to connect your motherboard to the EXT-232/EXT-485 LPC connector, remember that the cable length should be less than 10 cm.
