| 产品特性：工业主板 | 品牌：DFI | 型号：M.2-1LAN/2LAN |
| 设备类型：工控电脑 |

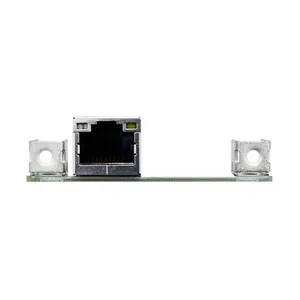

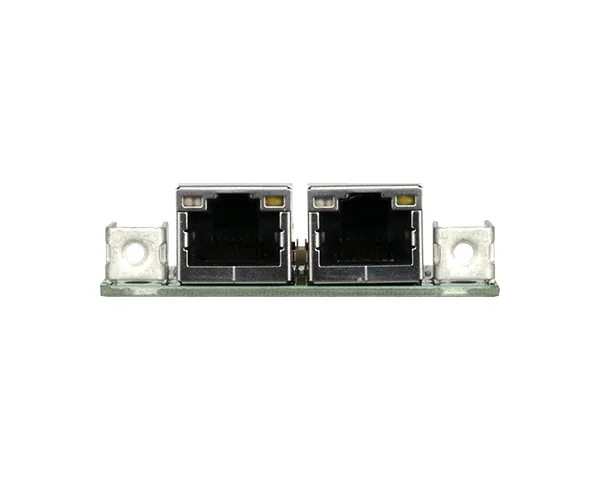

Port: 1 RJ45/2 RJ45
Interface: PCIe x1
Form Factor: M.2 B-M key 22mm x 80mm
装箱单
装箱单

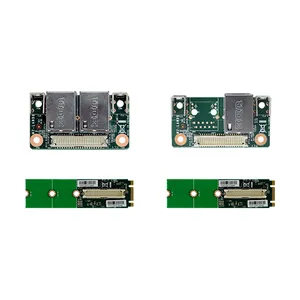

• 1 M.2-LAN module
• 1 M.2 LANDB module
• 1 cable (Length: 250mm): A81-009348-016G
规格
特性
◆ I/O CONNECTORS
• M.2-1LAN: 1 connector for 1 external LAN port
• M.2-2LAN: 2 connectors for 2 external LAN ports
◆ Mounting
• Terminal (Default)
• Bracket (Optional)
◆ APPLIED MODELS: All DFI systems and boards with M.2 interface.
◆ TEMPERATURE:
• Operating: 0°C to 70°C
• Storage: -40oC to 85oC
◆ HUMIDITY: 5% to 90%
◆ DIMENSIONS: M.2 B-M key 22mm x 80mm
