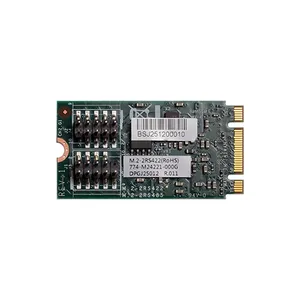

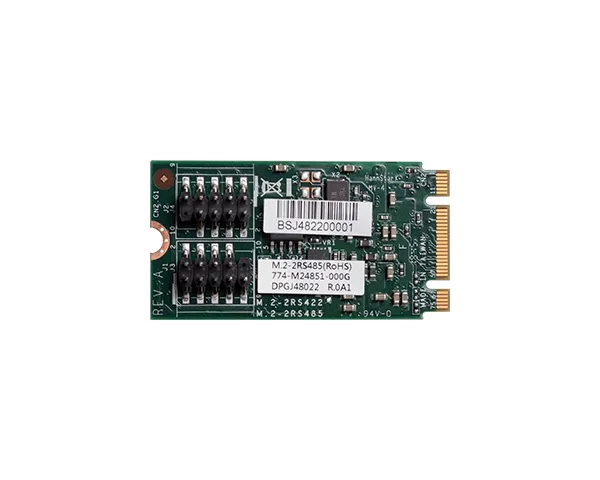

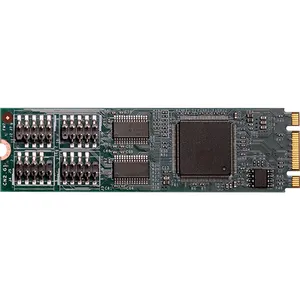

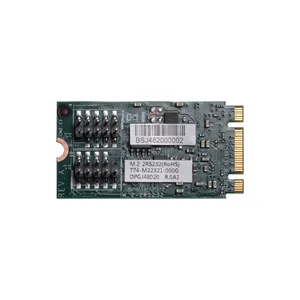

| 产品特性：工业主板 | 品牌：DFI | 型号：M.2-COM4 |
| 设备类型：工控电脑 |
Port: RS232/RS422/RS485
Mode: RS232/422/485 Selected by SW
Interface: PCIe x1
Form Factor: M.2 B-M key
装箱单
装箱单
• 1 M.2 serial port module
• 4 COM port cable (Length: 250mm): A81-015011-001G
规格
特性
◆ I/O CONNECTORS: RS232/RS422/RS485 functions with DB9 connector.
◆ POWER INPUT: 3.3V via M.2 connector
◆ APPLIED MODELS: All DFI systems and boards with M.2 interface
◆ TEMPERATURE:
• Operating: -40°C to 85°C
• Storage: -40°C to 85°C
◆ HUMIDITY: 5% to 90%
◆ FORM FACTOR
• M.2 B-M Key 22mm x 80mm (4 ports)
◆REGULATION: CE/FCC class B/RoHS
