| 产品特性：工业主板 | 品牌：DFI | 型号：SDVO-LVDS |
| 设备类型：工控电脑 |

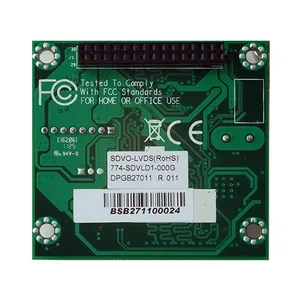

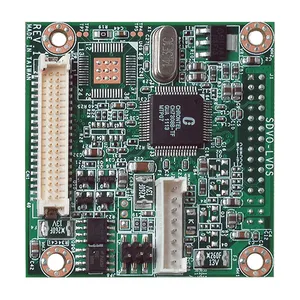

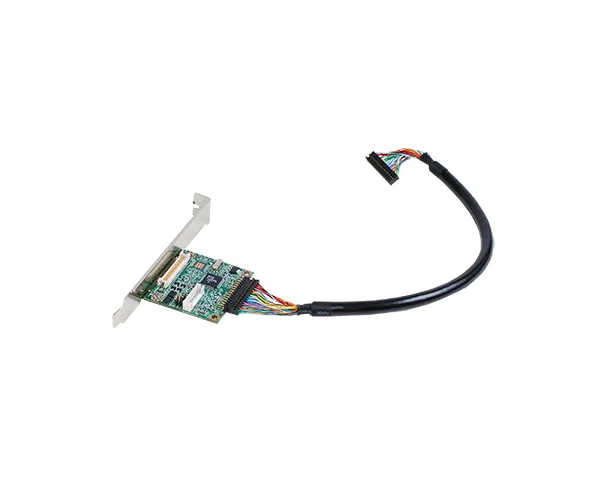

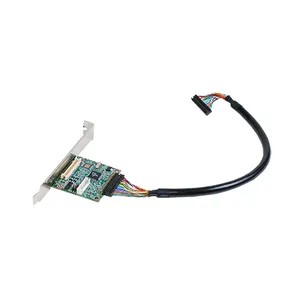

模块板
芯片: Chrontel CH7308B
输出: 1 LVDS
尺寸: 45mm x 38mm (1.77" x 1.49")
规格
特性
CHIP: Chrontel CH7308B LVDS transmitter chip
Features:
Single/Dual LVDS transmitter up to 165Mpixels/s
LVDS low jitter PLL accepts spread spectrum input
Supports 18/24-bit 1600x1200 LVDS panel
Supports dimming control via hot-keys
2D dither engine
Panel protection and power sequencing
High-speed SDVO I serial (1G~2Gbps) ACcoupled differential RGB inputs
Low voltage interface supports graphics device
Programmable power management
Fully programmable through OpCodes I
Supports complete Windows driver
Supports boundary scan
TEMPERATURE: 0°C to 60°C
DIMENSIONS:
45mm (1.77") x 38mm (1.49")
