| 产品特性：工业主板 | 品牌：DFI | 型号：TGU9A2 |
| 设备类型：工控电脑 |

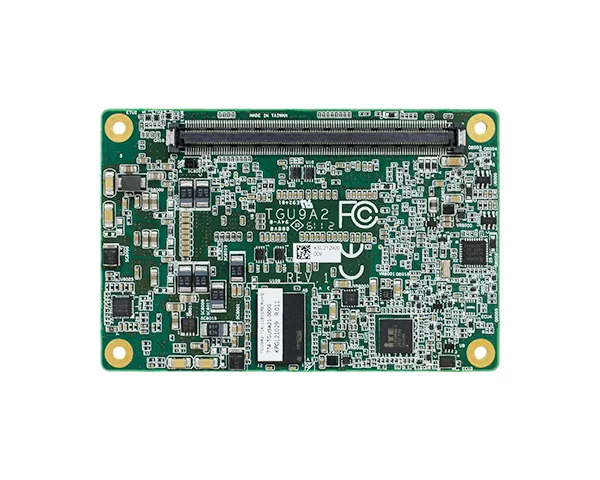

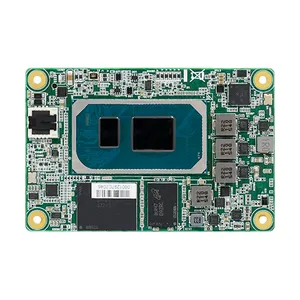

11th Generation Intel® Processor COM Express® Mini
Single Channel LPDDR4X 4266MHz；Memory Down up to 16GB
1 eDP, 1 DDI (HDMI/DVI/DP) , 双萤幕：DDI + eDP
DP++ supports 4K x 2K resolution
Multiple expansion: 1 PCIe x4, 2 I2C, 1 SMBus
Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0
15-Year CPU Life Cycle Support Until Q2&＃39; 35 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Core™ i7-1185G7E Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W)
Intel® Core™ i7-1185GRE Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W)
Intel® Core™ i5-1145G7E Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W)
Intel® Core™ i5-1145GRE Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W)
Intel® Core™ i3-1115G4E Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W)
Intel® Core™ i3-1115GRE Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W)
Intel® Celeron® 6305RE Processor (Core 2; Max speed 1.8 GHz; TDP 15W)
内存
Memory Down up to 16GB
Single Channel LPDDR4X 4266MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Iris® Xe graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
显示器
1 x DDI (HDMI/DVI/DP++)
1 x eDP
HDMI: resolution up to 3840x2160 @ 30 Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
双重显示
DDI + eDP
扩充
界面
1 x PCIe x4 (Gen 3)
1 x I2C
1 x SMBus
2 x SPI
2 x UART (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel® Ethernet I225IT (10M/100M/1000M/2.5Gbps)
输入/输出
USB
2 x USB 3.2 Gen.2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
SSD
1 x 128GB/256GB/512GB/1024GB on board SSD (available upon request)
DIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
固件信赖平台模块
BIOS default support FTPM, TPM2.0 by request
电源
类型
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
支持操作系统
支持操作系统
Windows: Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
1,230,760 hrs @ 25°C ; 845,813 hrs @ 45°C ; 598,810 hrs @ 60°C
464,366 hrs @ 70°C ; 309,043 hrs @ 85°C
Calculation Model : Telcordia Issue 4
Environment : GB, GC - Ground Benign, Controlled
机械结构
尺寸
COM Express® Mini 84mm (3.3") x 55mm (2.16")
规范
PICMG COM Express® R3.0, Type 10
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
• CPU Cooler (i7 & i5 Series) A71-108139-000G
• CPU Cooler (i3 & Celeron Series) A71-108139-010G
