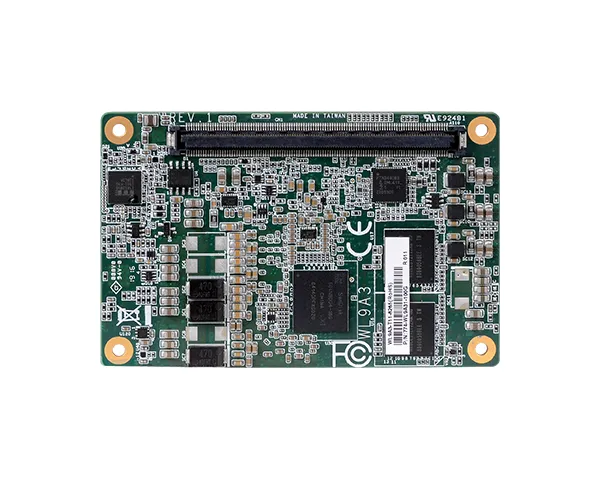

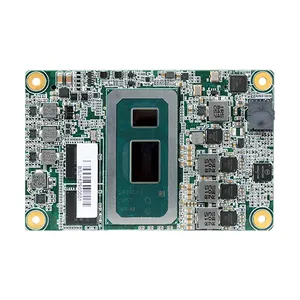

| 产品特性：工业主板 | 品牌：DFI | 型号：WL9A3 |
| 设备类型：工控电脑 |
Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
Multiple expansions: 4 PCIe x1
1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
Dual Channel LPDDR3 2133MHz；Memory Down up to 16GB
Intel® Core™ 8th Gen Processor
15-Year CPU Life Cycle Support Until Q2&＃39; 35 (Based on Intel IOTG Roadmap)
系统
处理器
8th Gen Intel® Core™ Processor, FCBGA1528
Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.1GHz (3.9GHz), 15W
内存
8GB/16GB Memory Down
Dual Channel LPDDR3 2133MHz
BIOS
SPI 128Mbit (default supports FTPM)
显示
控制器
Intel® UHD Graphics 620
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
显示器
1 x DDI (HDMI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30 Hz
DP++: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
双重显示
DDI + LVDS
DDI + eDP
扩充
界面
4 x PCIe x1 (Gen 3)
1 x SDIO
1 x LPC
2 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
音讯
界面
HD Audio
以太网路
控制器
1 x Intel® I219 (10/100/1000Mbps)
输入/输出
USB
2 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
1 x 4GB/8GB/16GB/32GB/64GB eMMC (available upon request)
GPIO
1 x 8-bit GPIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
12V~20V, 5VSB, VCC_RTC (ATX mode)
12V~20V, VCC_RTC (AT mode)
耗能
Typical: i7-8665UE: 12V @ 0.62A (7.44W)
Max.: i7-8665UE:12V @ 1.82A (21.84W)
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: 0 to 60°C, -30 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
610,322 hrs @ 25°C; 211,473 hrs @ 45°C; 83,430 hrs @ 60°C
43,428 hrs @ 70°C; 42,033 hrs @ 85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
COM Express® Mini
84mm (3.30") x 55mm (2.16")
规范
PICMG COM Express® R3.0, Type 10
安规认证
认证
CE, FCC, UKCA, RoHS
装箱单
装箱单
1 WL9A3 board
1 Heat sink (for 0 to 60°C): A71-008129-000G
1 Cooler (for -30 to 85°C): A71-108120-000G
