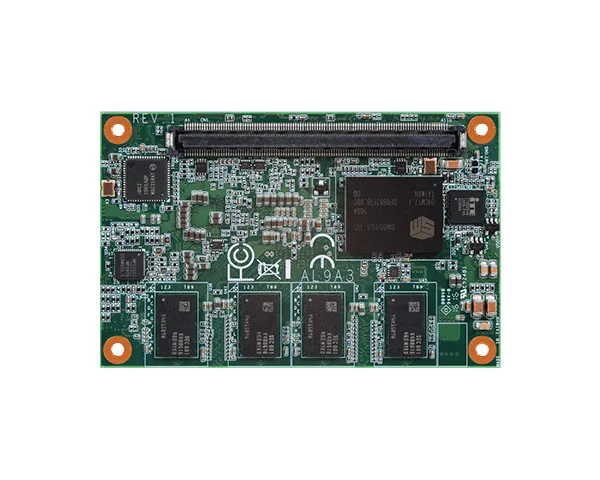

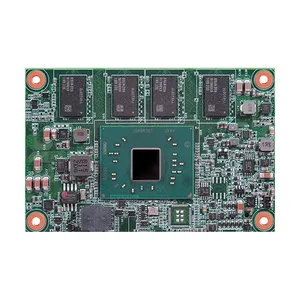

| 产品特性：工业主板 | 品牌：DFI | 型号：AL9A3 |
| 设备类型：工控电脑 |
Intel Atom® E3900 系列
双信道 DDR3L 1600MHz 板载内存 至8GB
1 LVDS/eDP, 1 DDI (HDMI/DVI/DP) 支持 双重独立显示: DDI + LVDS/eDP
多重扩充讯号: 4 PCIe x1
丰富 I/O: 1 Intel 网口, 2 USB 3.0, 8 USB 2.0
15年CPU长期支持至Q4&＃39; 32 (Based on Intel IOTG Roadmap)
系统
处理器
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
内存
4GB/8GB Memory Down
Dual Channel DDR3L 1600MHz
BIOS
AMI SPI 128Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
显示器
1 x DDI (HDMI/DVI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30 Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
双重显示
DDI + LVDS
DDI + eDP
扩充
界面
4 x PCIe x1 (Gen 2)
1 x SDIO (available upon request)
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
音讯
内部
HD Audio
以太网路
控制器
1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
输入/输出
USB
2 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
SSD
1 x 4GB/8GB/16GB/32GB/64GB SSD (available upon request)
GPIO
1 x 8-bit GPIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
耗能
Typical: E3940: 12V @ 0.34A (4.08W)
Max.: E3940:12V @ 1.62A (19.44W)
支持操作系统
支持操作系统 (UEFI Only)
Windows: Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
1,090,551 hrs @ 25°C; 509,776 hrs @ 45°C; 283,622 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
COM Express® Mini
84mm (3.30") x 55mm (2.16")
规范
PICMG COM Express® R2.1, Type 10
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 AL9A3 board 1 Heat sink:
(E Series) A71-008114-000G ; (N Series) A71-008114-010G
