| 产品特性：工业主板 | 品牌：DFI | 型号：ASL9A2 |
| 设备类型：工控电脑 |

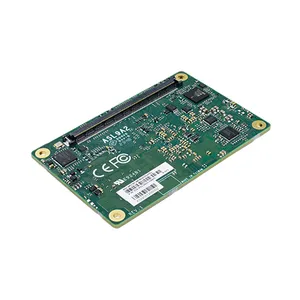

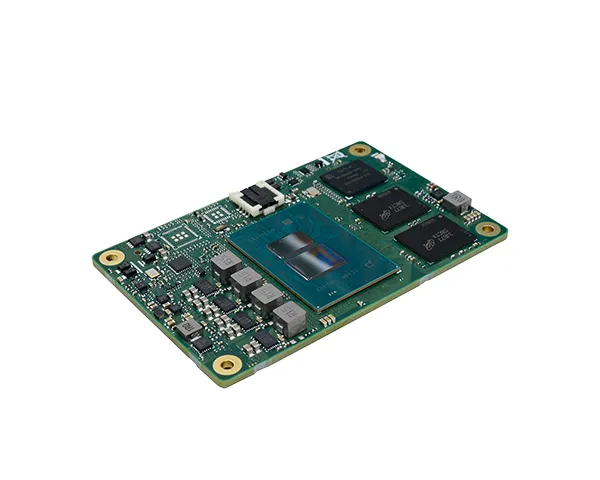

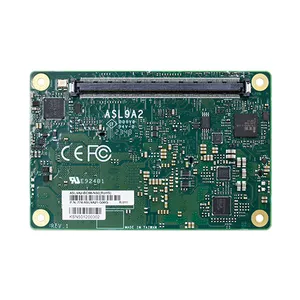

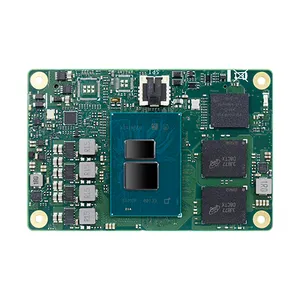

Intel® Atom® Processor Amston Lake Series
Dual Channel LPDDR5 4800MHz up to 16GB
1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
Rich I/O: 2 USB 3.1, 8 USB 2.0
High Speed Ethernet: Supports 100M/1000M/2.5Gbps
系统
处理器
Intel® Atom x7000RE series processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
内存
LPDDR5 up to 16GB
Dual Channel LPDDR5 4800MHz
8GB/16GB supported by project basis.
In-band ECC (IBECC) Supported by all CPU SKUs
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD
特性
Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1
HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
显示器
1 x DDI
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
双重显示
DDI + LVDS/eDP
扩充
界面
4 x PCIe x1 (Gen 3)
1 x I2C
1 x SMBus
1 x LPC
2 x UART (TX/RX)
1 x CAN bus (available upon request)
音讯
音讯编译码器
HD Audio
以太网路
控制器
1 x Intel® I226-IT / I226-LM (10/100/1000Mbps/2.5Gbps)
输入/输出
USB
2 x USB 3.2 Gen2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)
DIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM or fTPM (Optional)
电源
类型
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
耗能
TBD
支持操作系统
支持操作系统 (UEFI Only)
Windows 11/10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
COM Express® Mini
84mm (3.3") x 55mm (2.16")
规范
PICMG COM Express® R3.1, Type 10
安规认证
认证
CE, FCC
装箱单
装箱单
· Cooler, A71-808364-000G
