| 产品特性：工控机 | 品牌：DFI | 型号：EC500-ADS |
| 设备类型：工控电脑 |

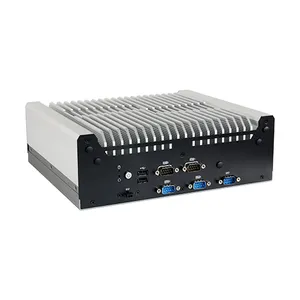

14th/13th/12th Generation Intel® Core™ with Intel® H610E/Q670E/R680E
Supports DDR4 SODIMM up to 64GB
Three independent displays: 1 VGA + 2 DP++
Rich I/O connectivity: 2 GbE, 6 COM, 4 USB 3.1, 2 USB 2.0
Multiple Expansion: 3 M.2 slots
Support 5G Communication
Operating Temperature: -20 to 70°C
15-Year CPU Life Cycle Support Until Q4&＃39; 36 (Based on Intel IOTG Roadmap)
系统
处理器
14th Generation Intel® CoreTM Processors, LGA 1700
13th Generation Intel® CoreTM Processors, LGA 1700
12th Generation Intel® CoreTM Processors, LGA 1700
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8GHz); 35W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6GHz); 35W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3GHz); 35W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, to 4GHz); 35W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3GHz); 35W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4GHz); 35W
芯片组
Q670E
Intel® Q670E Chipset
R680E
Intel® R680E Chipset
H610E
Intel® H610E Chipset
内存
Two 260-pin DDR4 3200MHz SODIMM up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
特性
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
显示器
1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
储存
内插
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1 (Q670E/R680E)
扩充
界面
Q670E
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB3.0)
R680E
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB3.0)
H610E
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 3042/3052 B key (PCIe)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I225IT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Status LED
1 x HDD LED

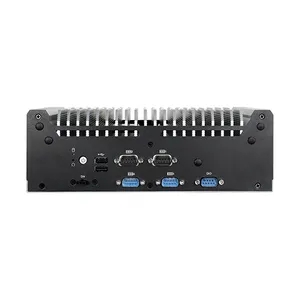

前板输入/输出
串口
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
DIO
8 bit (DB-9)
按键
1 x Power button
1 x Reset button
Wi-Fi 天线
4 x Antenna hole

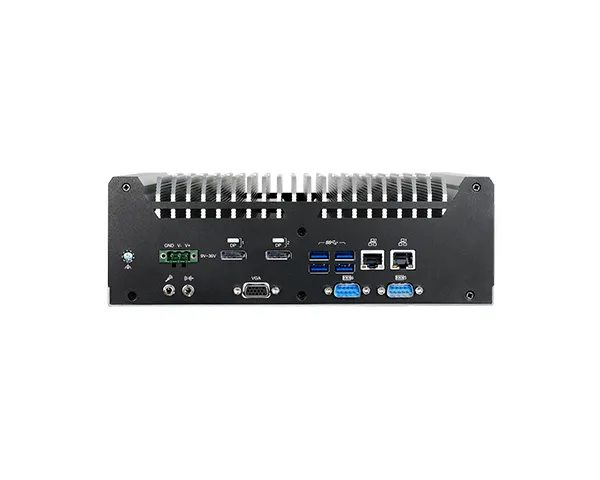

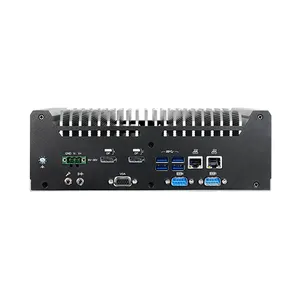

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
2 x RS-232 (DB-9)
USB
4 x USB 3.1 (type A)
显示
VGA + 2 DP++
音源
1 x Line-out
1 x Mic-in
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
Wide range 9~36V
端口
3-pole terminal nlock
3-pin power extension switch connector
支持操作系统
微软
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 IoT Enterprise LTSC
Linux
Linux (available upon request)
环境指标
运作温度
-20 to 70°C (SSD or M.2 storage)
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
255.3 x 85 x 224mm
重量
4.15 kg
安规认证
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
抗振动测试
IEC68-2-64
认证
CE, FCC Class A, RoHS, UKCA, BIS
装箱单
装箱单
1 EC500-ADS system unit
1 M.2 slot screws
1 Terminal block 3 pole for DC input
1 Cable with 2 wire stripped and tinned to DC jack
