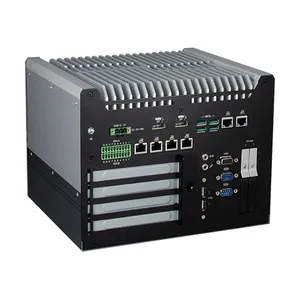

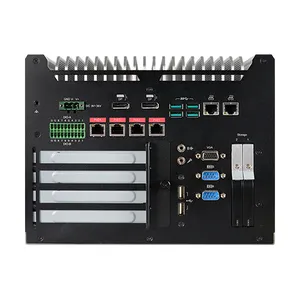

| 产品特性：工控机 | 品牌：DFI | 型号：EC543-CS |
| 设备类型：工控电脑 |
8th/9th Generation Intel® Core™ with Intel® Q370
Supports DDR4 SODIMM up to 64GB
Three independent displays: 1 VGA + 2 DP++
Support 4 PoE (EC543-CS6G86E-Q)
3 PCIe, 1 PCI, and 3 M.2 slots support NVMe
Support 5G Communication
Operating Temperature: -20 to 60°C
15-Year CPU Life Cycle Support Until Q2&＃39; 34 (Based on Intel IOTG Roadmap)
系统
处理器
8th/9th Generation Intel® Core™ Processors, LGA 1151
Intel® Core™ i7-9700TE, Octa Cores, 12M Cache, up to 3.8 GHz, 35W
Intel® Core™ i5-9500TE, Hexa Cores, 9M Cache, up to 3.6 GHz), 35W
Intel® Core™ i3-9100TE, Quad Cores, 6M Cache, up to 3.2 GHz, 35W
Intel® Core™ i7-8700T Processor, Hexa Core, 12M Cache, 2.4GHz (4GHz), 35W
Intel® Core™ i5-8500T Processor, Hexa Core, 9M Cache, 2.1GHz (3.5GHz), 35W
Intel® Core™ i3-8100T Processor, Quad Core, 6M Cache, 3.1GHz, 35W
Intel® Pentium® Processor G5400T, Dual Core, 4M Cache, 3.1GHz, 35W
Intel® Celeron® Processor G4900T, Dual Core, 2M Cache, 3.1GHz, 35W
芯片组
Intel® Q370 Chipset
内存
Two 260-pin DDR4 2400/2666MHz SODIMM up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
特性
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
显示器
1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
双重显示/三重显示
VGA + 2 DP++
储存
界面
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1
扩充
界面
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCI slot
1 x PCIe x16 @Gen3, x16 slot
1 x PCIe x4 @Gen3, x8 slot
1 x PCIe x1 @Gen3, x4 slot
音讯
音讯编译码器
ALC888
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
界面
RJ-45
LED
指示灯
1 x Status LED
1 x HDD LED

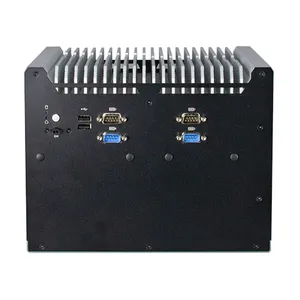

前板输入/输出
串口
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
按键
1 x Power Button
1 x Reset Button
天线
4 x Antenna Hole (WiFi)

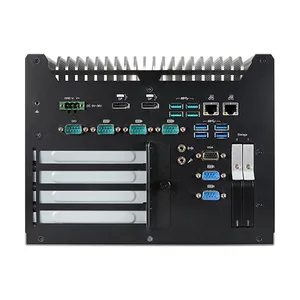

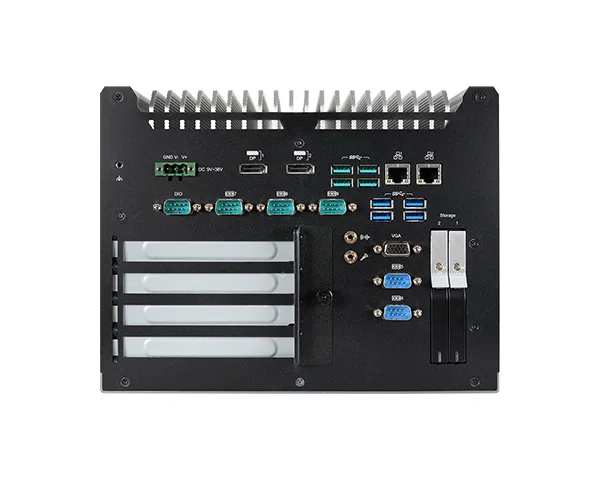

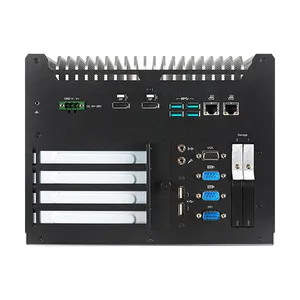

背板输入/输出
PoE
EC543-CS6G86E-Q
4 x PoE
以太网络
EC543-CS6G86E-Q
2 x GbE (RJ-45)
EC543-CS6G86-Q
6 x GbE (RJ-45)
EC543-CS6881-Q
2 x GbE (RJ-45)
EC543-CS98A1-Q
2 x GbE (RJ-45)
串口
EC543-CS6881-Q
2 x RS232
EC543-CS6G86E-Q
2 x RS232
EC543-CS6G86-Q
2 x RS232
EC543-CS98A1-Q
3 x RS232/422/485
2 x RS232
USB
EC543-CS6881-Q
4 x USB 3.1(Gen.2)
2 x USB2.0
EC543-CS6G86E-Q
4 x USB 3.1(Gen.2)
2 x USB2.0
EC543-CS6G86-Q
4 x USB 3.1(Gen.2)
2 x USB2.0
EC543-CS98A1-Q
4 x USB 3.1(Gen.2)
4 x USB 3.1(Gen.1)
DIO
EC543-CS6G86E-Q
16 bits DIO
EC543-CS6G86-Q
16 bits DIO
EC543-CS6881-Q
8 bits DIO
EC543-CS98A1-Q
8 bits DIO
显示
1 x VGA
2 x DP++
音源
1 x Line-out
1 x Mic-in
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
Wide range 9~36V
端口
3-pole terminal block
2-pin power extension switch connector
支持操作系统
微软
Windows 10 IoT Enterprise 64 Bit
Linux
Linux (available upon request)
环境指标
运作温度
-20 to 60°C (SSD or mSATA)
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
255.3 x 195 x 224mm
重量
5.4 kg
安规认证
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
抗振动测试
IEC68-2-64
认证
CE, FCC Class A, UKCA
装箱单
装箱单
1 EC543-CS system unit
1 M.2 slot screws
1 terminal block 3-pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
