| 产品特性：AI边缘产品 | 品牌：DFI | 型号：X6-ORN-GMSL |
| 设备类型：工控电脑 |

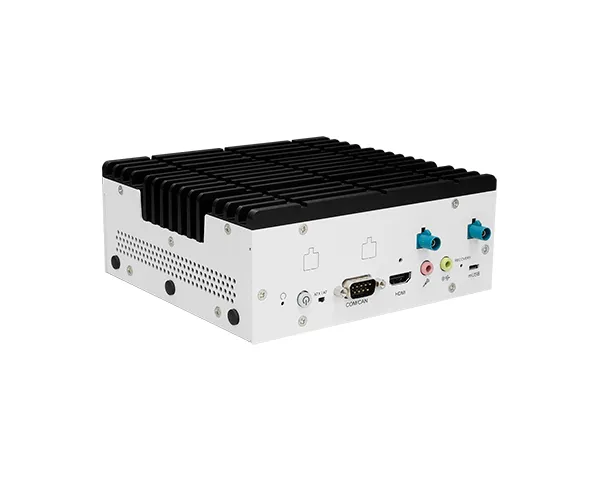

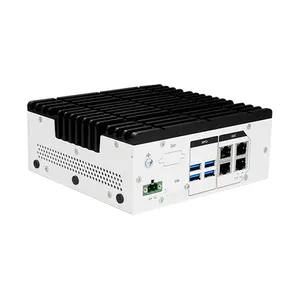

Nvidia Edge AI engine: NVIDIA® Jetson Orin Nano™ or NX
Multi GbE ports with PoE: Four RJ45 GbE ports and optional 2x PoE
Optional OOB (out-of-band) support
Multiple Expansions: 1 M.2 2230 E-Key, 1 M.2 2280 M-Key, 1 M.2 3042/3052 B-Key
Camera Connectivity: 4x USB 3.2, 2x PoE(15W), 2x GMSL2
Support M2A-OOB
系统
处理器
6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
内存
8GB 128-bit LPDDR5 68 GB/s for Orin Nano™ 8GB
4GB 64-bit LPDDR5 34 GB/s for Orin Nano™ 4GB
16GB 128-bit LPDDR5 102.4GB/s for Orin NX 16GB
8GB 128-bit LPDDR5 102.4GB for Orin NX 8GB
SOM
NVIDIA® Jetson Orin Nano™ 4GB, 7-10W
NVIDIA® Jetson Orin Nano™ 8GB, 7-15W
NVIDIA® Jetson Orin NX 8GB, 10-20W
NVIDIA® Jetson Orin NX 16GB, 10-25W
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores for Jetson Orin Nano™ 8GB and Orin NX 8/16GB, 40 TOPS
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores for Jetson Orin Nano™ 4GB, 20 TOPS
显示
显示器
HDMI
储存
内插
M.2 2242/2280 M key (PCIe x4)
扩充
On board
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM
以太网路
控制器
Four RJ45 GbE ports from 4x Intel i210
Supports 2x 15W PoE ports upon request
LED
指示灯
1 x PoE
1 x OOB

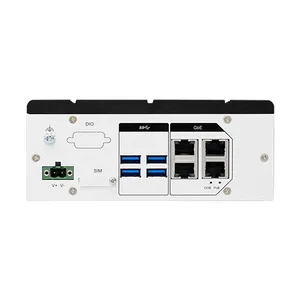

前板输入/输出
以太网络
4 x RJ45 GbE connectors
USB
4 x USB 3.2 Gen1
1 x micro USB for OS Flash
SIM
accessible Nano SIM slot (covered by bracket)
DC in
1 x 2-pin power terminal block

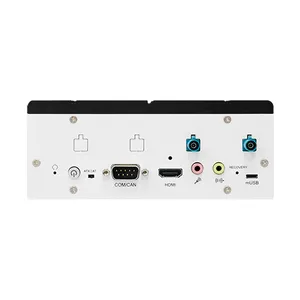

背板输入/输出
DIO
1 DB-9 for 4 DI/ 4 DO
显示
1 x HDMI
音源
Mic-in, Line-out
CAN bus / COM
1 x DB-9 for 1 RS232(Tx,Rx) and 1 CAN bus
GMSL2
Fakra Z-code(male) x 2ch (4K30fps x1 / 1080p60fps x2 / 720p60fps x2)
监视定时器
看门狗定时器
Built-in NVIDIA® Jetson Orin™
天线
天线
6 x antenna holes
On board
On board
CPU fan header from EC
Recovery switch for image update
Reset button
Power button
电源
类型
9-36V DC
端口
1x 2-pin terminal block
RTC 电池
CR2032
支持操作系统
Linux
Ubuntu 22.04
环境指标
MTBF
-20°C to 60°C
储存温度
-40°C to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
安装方式
Wall mount (mounting brackets and screws)
DIN mount by optional
尺寸 (宽 x 高 x 深)
Approx. 165 x 65 x 150 mm
重量
1.98kg
安规认证
冲击测试
· Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non- Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
抗振动测试
· Operation
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.
· Non- Operation
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
认证
CE, FCC Class A, RoHS
