| 产品特性：AI边缘产品 | 品牌：DFI | 型号：V6Xa-ORN |
| 设备类型：工控电脑 |

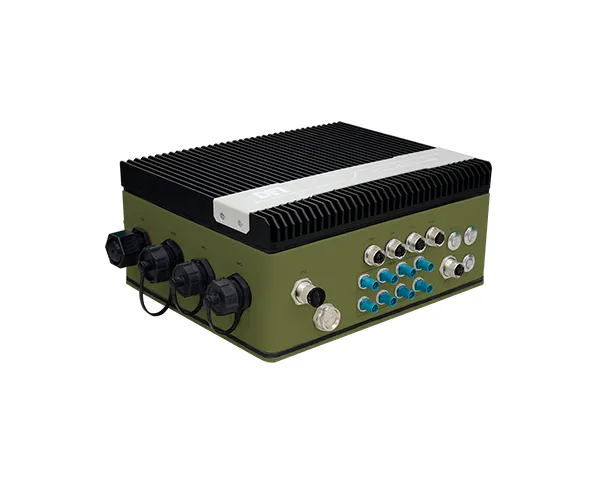

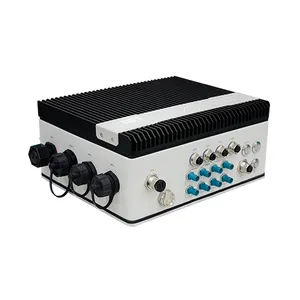

NVIDIA Edge AI engine: NVIDIA® Jetson Orin Nano™ or NX
In-Vehicle Design 9-36VDC input with ignition control eMark certification
Waterproof & Dustproof design conforming to IP67
Ruggedized fanless design with -20 ~ 70°C (Optional -40°C ~ 70°C) operating temperature
Optional Wireless Expansions: WiFi 6E, 4G LTE / 5G
Camera Connectivity: 2x USB 3.0, 8x GMSL2 or 6 x PoE (max.)
Optional OOB (out-of-band) support
系统
处理器
6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
内存
8GB 128-bit LPDDR5 68 GB/s for Orin Nano™ 8GB
4GB 64-bit LPDDR5 34 GB/s for Orin Nano™ 4GB
16GB 128-bit LPDDR5 102.4GB/s for Orin NX 16GB
8GB 128-bit LPDDR5 102.4GB for Orin NX 8GB
SOM
NVIDIA® Jetson Orin Nano™ 4GB, 7-10W
NVIDIA® Jetson Orin Nano™ 8GB, 7-15W
NVIDIA® Jetson Orin NX 8GB, 10-20W
NVIDIA® Jetson Orin NX 16GB, 10-25W
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores for Jetson Orin Nano™ 8GB and Orin NX 8/16GB
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores for Jetson Orin Nano™ 4GB
显示
显示器
1 x HDMI, M20
储存
内插
M.2 2242/2280 M key (NVMe)
扩充
On board
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B slot for 5G/LTE with Nano SIM
以太网路
控制器
2x RJ45 GbE ports from Intel i210
Supports 2x 15W PoE ports
LED
指示灯
1 x Power

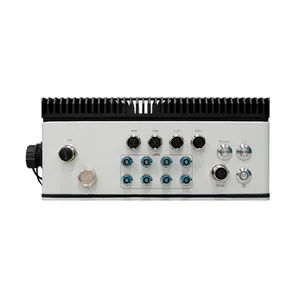

前板输入/输出
以太网络
2 x GbE M12 X code 8pin with PoE 802.3af
USB
1 x USB 2.0 M20 (type A for recovery)
DC in
1 x M12 B Code 5pin Power Input
CAN bus / COM
1 x M12 A Code (***lated CAN BUS 2.0 Port With Transceiver x 2)
GPIO
1 x M12 GPIO / RS485 (4x GPI & 2x GPO & 1x RS485)
Camera Interface
4 x GbE M12 X code 8pin PoE 802.3af)
Or
8 x GMSL2 (FAKRA SMB Plug Z code)

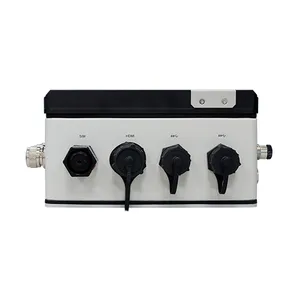

侧面输入/输出
显示器
1 x HDMI M20
SIM
1 x SIM card slot M20
USB
2 x USB 3.0 M20 (type A)
监视定时器
看门狗定时器
Built-in NVIDIA® Jetson Orin™
天线
天线
6 x antenna holes
电源
类型
9-36V DC with power ignition control
端口
1 x M12 B Code 5pin Power Input
RTC 电池
Yes
支持操作系统
Linux
Jetpack 6.2
环境指标
运作温度
-20 ~ 70°C (Optional -40°C~70°C)
储存温度
-40°C ~ 85°C
相对湿度
5 ~ 95% RH (non-condensing)
机械结构
安装方式
Wall mount (mounting brackets and screws)
尺寸 (宽 x 高 x 深)
237mm x L: 194mm x H: 105.3mm
重量
5.2kg
安规认证
冲击测试
Operation shock test:
IEC-60068-2-27
MIL-STD-810H 514.8C-5
抗振动测试
Operation Vibration test:
IEC 60068-2-64
MIL-STD-810H 514.8C-5
认证
CE, FCC, eMark, RoHS
IP Rating
IP67 enclosure
