| 产品特性：AI边缘产品 | 品牌：DFI | 型号：X6a-AGX |
| 设备类型：工控电脑 |

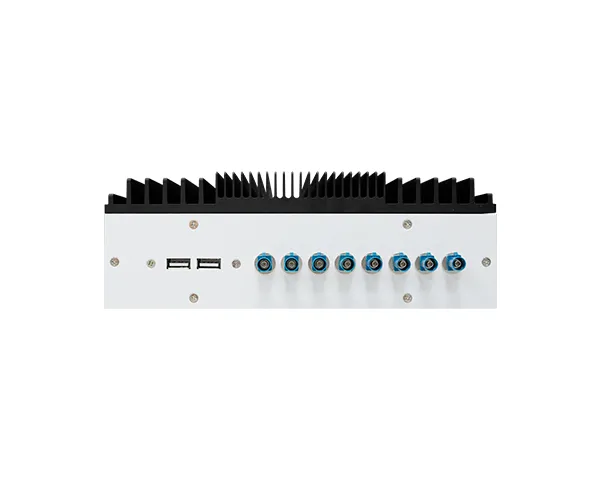

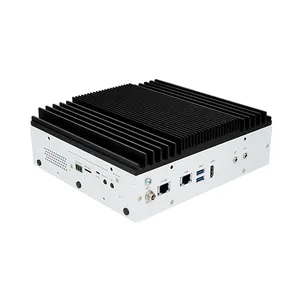

NVIDIA Edge AI engine: NVIDIA® Jetson Orin AGX™ module (max. 275 TOPs)
Rich I/O: 1 10GLAN, 1G LAN, 2 USB 3.2 Gen1, 1 USB type B, 1 HDMI, 1 MicroSD, 1 CAN bus
Ruggedized fanless design with -20 ~ 60°C operating temperature
Optional Wireless Expansions: WiFi 6E, 4G/5G
Optional 8 x GMSL Camera Interface
Optional Video Capture: 1 x SDI, 1 x HDMI
Optional OOB (out-of-band) support
系统
处理器
8/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
内存
64/32GB 256-bit LPDDR5
SOM
NVIDIA® Jetson Orin AGX™ Industrial
NVIDIA® Jetson Orin AGX™ 64GB
NVIDIA® Jetson Orin AGX™ 32GB
GPU
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
显示
显示器
HDMI
储存
内插
M.2 2242/2280 M key (NVMe)
micro-SD card slot
扩充
On board
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM
以太网路
控制器
1x GbE RJ-45
1x 10G RJ-45
LED
指示灯
1 x Power
摄像头/视频接口
视频采集
(M.2 expansion)
1 x SDI
1 x HDMI
摄像头接口
8 x GMSL2 (MIPI SerDes)

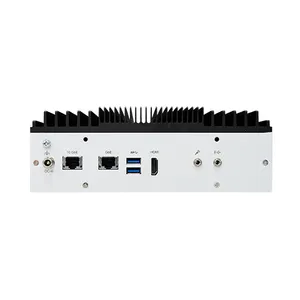

前板输入/输出
以太网络
1 x RJ45 GbE connector
1 x RJ45 10G ethernet connector
USB
2 x USB 3.2 Gen1
显示
1 x HDMI
DC in
1 x DC Jack with lock

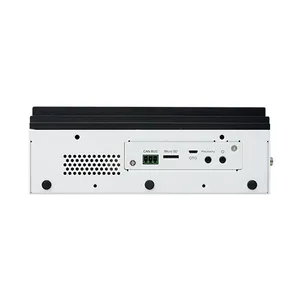

侧面输入/输出
USB
USB type B for OTG recovery
2 x USB 2.0
按钮
1 x Power, 1 x recovery
SD
1 x MicroSD
CAN Bus
3-pin terminal block with transceiver
监视定时器
看门狗定时器
Built-in NVIDIA® Jetson Orin™
天线
天线
6 x antenna holes
电源
类型
12~54V DC
端口
1 x DC Jack with lock
RTC 电池
Yes
支持操作系统
Linux
Jetpack 6.2
环境指标
运作温度
-20°C to 60°C
储存温度
-40°C to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
尺寸
Approx. 221mm x L: 200mm x H: 80mm
安装方式
Wall mount (mounting brackets and screws)
重量
4.2kg
安规认证
冲击测试
· Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non- Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
抗振动测试
· Operation:
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.
· Non- Operation:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
认证
CE, FCC Class A, RoHS
