• 8th/9th Generation Intel® Core™ Processors

• Multiple displays: 4 DP (from MXM), 1 DP++

• AI Accelerated: Up to 60W GPU MXM module supported

• Scalability: 3 M.2 expansion slots

• Support M.2 B key 3052 5G cellular module

• Rich I/O connectivity: 4 LAN, 4 USB 3.1, 2 COM

系统

处理器

Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Pentium® G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W)
Intel® Celeron® G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W)

芯片组

Intel® H310/Q370 Chipset

内存

DDR4 2400/2666MHz up to 64GB

BIOS

AMI SPI 128Mbit (supports UEFI/Legacy mode)

显示

控制器

Intel® UHD Graphics 630 (Pentium® G5400 and Celeron® G4900 support Intel® UHD
Graphics 610)

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

显示器

4 x DP (from MXM)
1 x DP++
DP: resolution up to 4096x2304@60Hz

AI 加速器

界面

1 x MXM 3.1 slot, Type-A/B up to 60W

储存

内插

1 x M.2 M key supports 2242/2280 slot (PCIe Gen3 x4/SATA)
1 x SATA III connector for 1 x 2.5” SSD

扩充

M.2

H310

M.2 M key 2242/2280 slot (PCIe Gen2 x1)

M.2 B key 3052 slot (SATA 3.0)

M.2 E key 2230 slot (USB 2.0, PCIe Gen2 x1)

Q370

M.2 M key 2242/2280 slot (PCIe Gen3 x4, SATA3.0)

M.2 B key 3052 slot (PCIe Gen3 x1, USB 3.2 Gen1)

M.2 E key 2230 slot (USB 2.0, PCIe Gen3 x1)

音讯

音讯编译码器

5.1 CH Audio Codec:Realtek ALC888S-VD2-GR

以太网路

控制器

3 x Intel® I210AT

H310

1 x Intel® I219V

Q370

1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

LED

指示灯

1 x PWD LED
1 x HDD LED

前板输入/输出

串口

2 x RS232/RS422/RS485, Select by BIOS

音源

1 x Line-out
1 x Mic-in

按键

1 x Power button

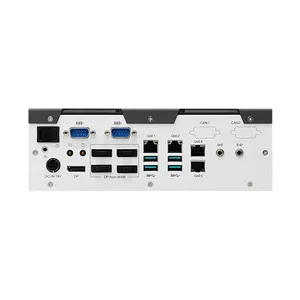

背板输入/输出

以太网络

4 x GbE

USB

4 x USB 3.1 Gen2

显示

4 x DP (from MXM)
1 x DP++

天线

4 x SMA for 5G module
2 x SMA for WiFi module

监视定时器

看门狗定时器

Watchdog timeout programmable via software from 1 to 255 seconds

安全性

信赖平台模块

dTPM2.0 (default)

电源

端口

DC-in Jack

电压

19V DC-in

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit

Linux

Linux

环境指标

运作温度

0 to 45°C

储存温度

-40 to 85°C

相对湿度

5 to 95% RH (non-condensing)uminum extrusion + Metal

机械结构

结构

Aluminum + SGCC

安装方式

Wall mount (mounting brackets and screws)

尺寸 (宽 x 高 x 深)

250 x 180 x 76mm (not include wall mount bracket)

重量

5 Kg

安规认证

冲击测试

IEC 60068-2-27
15 g, 11 ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

抗振动测试

IEC 60068-2-64 Test Fh: Vibration board-band random test
Frequency: 5 Hz to 500 Hz
Acceleration: 2g rms
Test Axis: X, Y, Z axis
Test Time: 30 mins (Each axis), total 90 mins.

认证

CE, FCC Class A, RoHS, UKCA

装箱单

装箱单

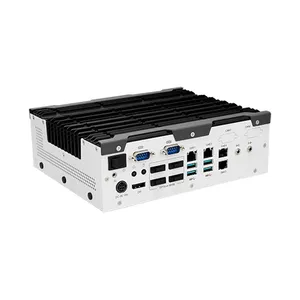

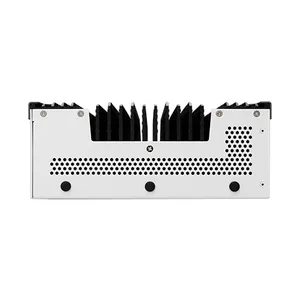

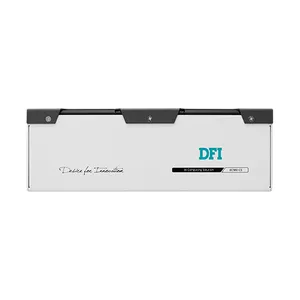

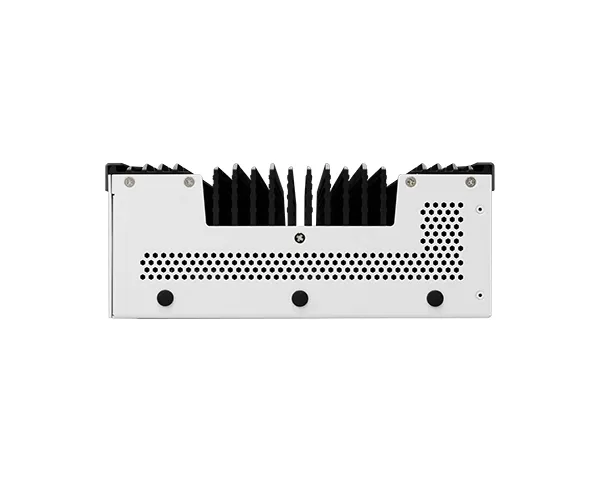

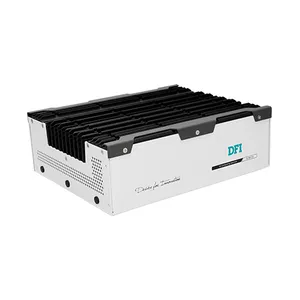

• 1 EC180-CS system unit
• 3 M.2 slot screws
• 2 MXM Module screws
