| 产品特性：AI边缘产品 | 品牌：DFI | 型号：EC100-XNX |
| 设备类型：工控电脑 |

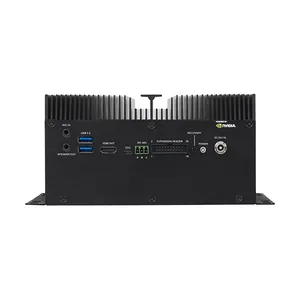

Fully support NVIDIA® Jetson Xavier™ NX
8 x 10/100 MbE with PoE

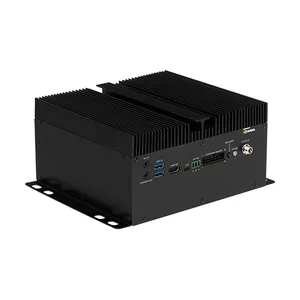

Fanless chassis technology
20 pins with 1 x UART, 2 x I2C, 9 x GPIOs
1 x HDMI 2.0a/b Type-A supports 4K@60Hz
系统
运算平台
NVIDIA® Jetson Xavier™ NX module
储存
外插
16 GB e.MMC v5.1
以太网路
界面
1 x GbE RJ-45

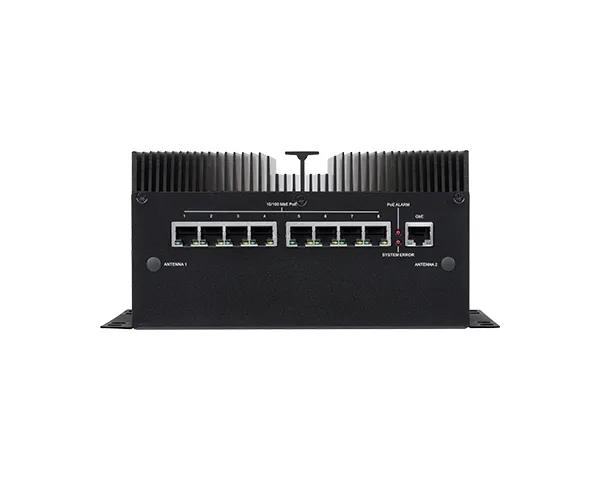

8 x 10/100 MbE RJ-45 with PoE
LED
指示灯
1 x Power LED
1 x Recovery LED
(RGB tri-color LED)
输入/输出
以太网络
1 x GbE RJ-45
USB
1 x USB 2.0 Micro-B for recovery
2 x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
1 x mPCIe (Host Interface: USB 2.0)
屏幕
1 x HDMI 2.0a/b Type-A
(HDMI: resolution up to 3840 x 2160 @ 60Hz)
GPIO
1 x 3.3V UART
2 x I2C
9 x GPIOs
按键
1 x Power Button
1 x Recovery Button
PoE
8 x 10/100 MbE RJ-45 with PoE
(Max for the first 4 ports is 15.4W and total power budget is 100W)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
54V / 2.78A
RTC 电池
Support RTC battery and Battery Life Monitoring by MCU
环境指标
运作温度
0°C ~ 60°C
储存温度
-40°C ~ 85°C
相对湿度
Relative Humidity 40 °C @ 95%, Non-Condensing
机械结构
尺寸
190mm(W) x 80mm(H) x 175mm(D)
(W:220 mm with mounting ears)
重量
2.75 Kg
安规认证
认证
CE, FCC
